What Is Spine-Leaf Architecture & How Do You Design It?

As data center demands grow, traditional three-tier network models often fall short in delivering the speed, scalability, and efficiency modern infrastructures require. That’s where Spine-Leaf Architecture comes in — a simplified, scalable, and high-performance network design that has become the go-to for modern data centers.

What Is Spine-Leaf Architecture?

The Spine-Leaf architecture is a two-tier topology comprising:

• Spine Switches : High-capacity switches forming the network core. They handle all routing between leaf switches and never connect to servers directly.

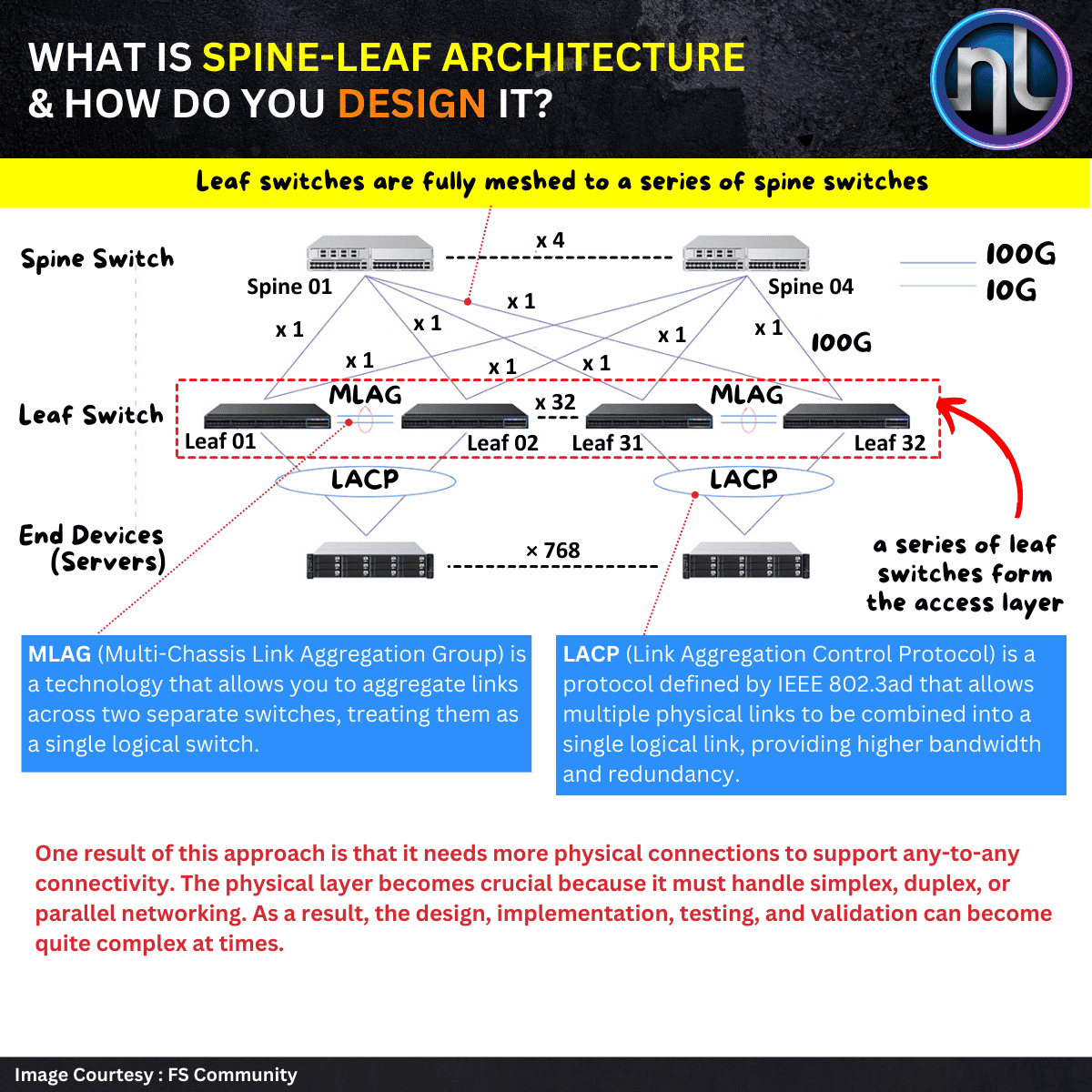

• Leaf Switches : Access-layer switches that connect directly to servers, storage devices, and other endpoints. Each leaf switch connects to every spine switch, creating a non-blocking, full-mesh fabric.

This design ensures minimal hop counts, reduced latency, and efficient east-west traffic handling, making it ideal for today’s data-intensive applications.

How to Design Spine-Leaf Architecture

Here’s a step-by-step breakdown to help you plan an efficient Spine-Leaf network:

Determine Network Size

Estimate the total number of devices (servers, storage, etc.) to connect. This will help define how many leaf switches are needed.

Select the Right Spine Switches

Choose high-speed, non-blocking switches that support 40G, 100G, or 400G uplinks. These form the backbone of your network.

Implement Full-Mesh Connectivity

Ensure every leaf switch connects to every spine switch. This full-mesh design guarantees redundancy and consistent low-latency performance.

Implement Full-Mesh Connectivity

Ensure every leaf switch connects to every spine switch. This full-mesh design guarantees redundancy and consistent low-latency performance.

Plan for Future Growth

Spine-Leaf is inherently scalable. You can:

• Add more leaf switches to accommodate new devices.
• Add more spine switches to expand interconnect capacity.

Use ECMP Routing

Deploy Equal-Cost Multi-Path (ECMP) routing to distribute traffic evenly across multiple links. This enhances bandwidth utilization and builds redundancy into every connection.

Why It’s Popular

Spine-Leaf architecture offers scalability, high performance, low latency, and redundancy, making it the preferred choice for modern, high-performance data centers.

Final Takeaway

Spine-Leaf architecture is not just a trend — it’s a foundational approach to building agile, resilient, and high-performance data center networks. If you’re designing a new facility or upgrading an existing one, this model offers the best mix of efficiency, performance, and future-proofing.

Looking to deploy Spine-Leaf architecture in your next project?

Connect with Northern Link experts for design support, hardware recommendations, and implementation best practices.
