UPS Sizing for Data Centers: Calculating Capacity with Growth, Efficiency, Power Factor, and Redundancy

Key factors when selecting a UPS for a data center:

Future Load Growth

When sizing a UPS for data centers, plan for the next 5–10 years of growth. Allow flexibility by slightly oversizing or using a modular system to expand as needed. Industry best practices suggest running UPS at about 80% capacity to handle peak loads and growth without risking overload or needing an upgrade.

Power Factor Correction Needs

Correcting the power factor is key for UPS efficiency in data centers, as low power factors can reduce performance. Improving the power factor closer to 1.0 helps the UPS run more effectively. Some UPS systems also reduce electrical noise by compensating for harmonic distortion from non-linear loads, which improves power quality and reliability for critical equipment.

Efficiency at Different Load Levels

UPS systems operate at different efficiencies based on the load level, typically reaching peak efficiency between 30-90% load. Reviewing a UPS’s efficiency curve can help you select the best load range for your data center, optimizing energy use and costs. Some UPS systems also offer energy-saving modes, like “eco-mode,” which can bypass double conversion when the incoming power quality is stable, increasing efficiency. However, this mode should be used with care, as it may reduce protection in some configurations.

Scalability and Redundancy Needs

To ensure reliability, data centers often use redundant UPS setups like N+1 or 2N. N+1 means having one extra UPS unit as a backup, while 2N doubles the total capacity, providing even more backup. Modular UPS systems are another great option, as they let you increase power capacity easily as the data center’s needs grow, providing flexibility and scalability.

Environmental Conditions and Cooling Load

UPS systems produce a lot of heat, especially larger ones, so it’s important to calculate the extra cooling required to keep them from overheating. High temperatures can also shorten battery life, so it’s best to place UPS systems in climate-controlled areas. When designing HVAC systems, consider the additional heat load from the UPS to ensure batteries and equipment stay at optimal temperatures, extending their lifespan.

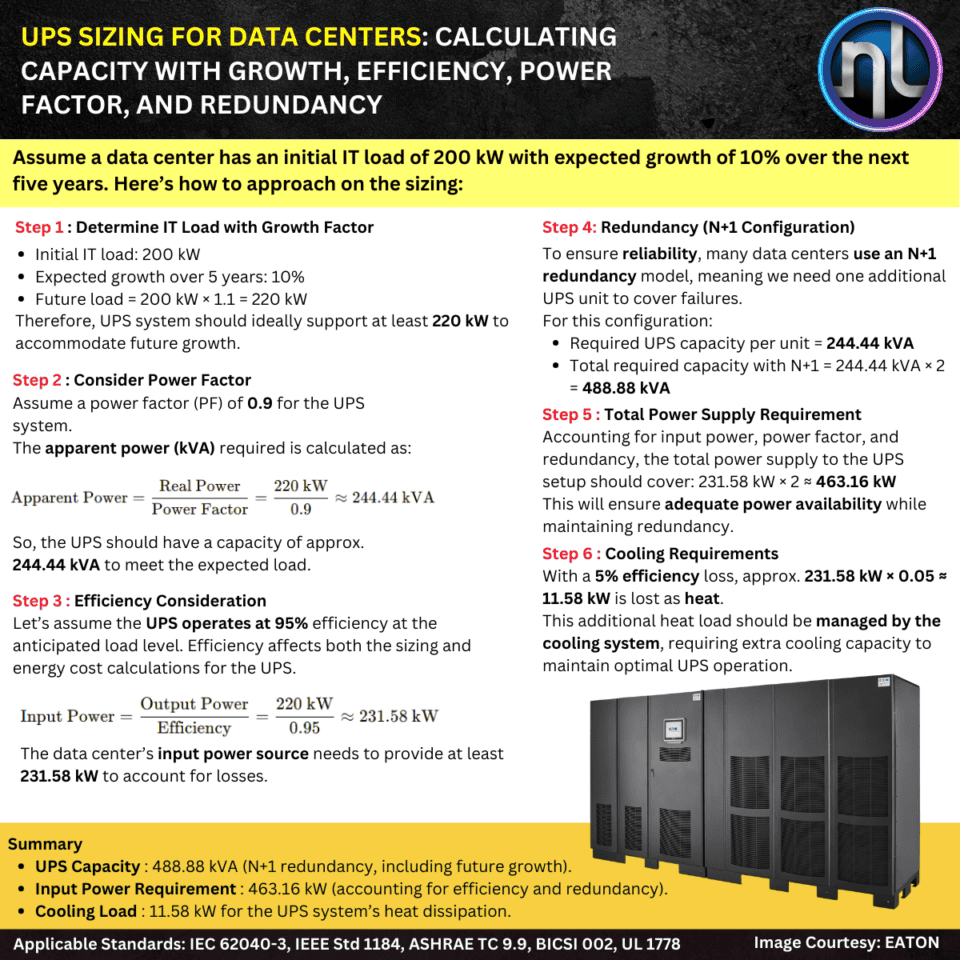

Assume a data center has an initial IT load of 200 kW with expected growth of 10% over the next five years. Here’s how to approach on the sizing:

Step 1 : Determine IT Load with Growth Factor
Step 2 : Consider Power Factor
Step 3 : Efficiency Consideration
Step 4: Redundancy (N+1 Configuration)
Step 5 : Total Power Supply Requirement
Step 6 : Cooling Requirements
