Understanding Near End CrossTalk (NEXT) in Ethernet Cables

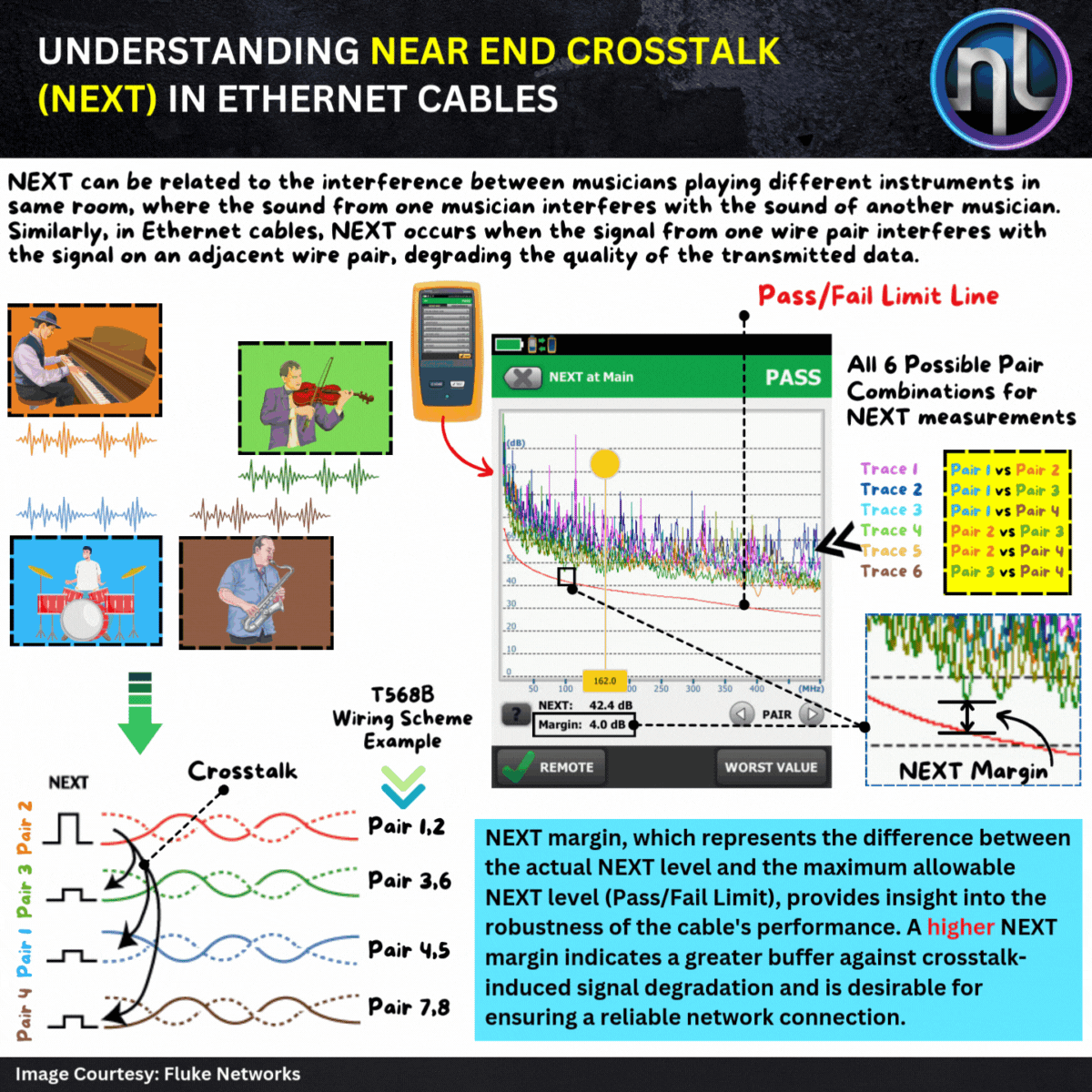

Near End Crosstalk (NEXT) is a phenomenon encountered in Ethernet cables, particularly those with twisted pairs of wires, where signals transmitted on one pair of wires interfere with signals transmitted on an adjacent pair.

This interference can lead to errors in data transmission and a reduction in network performance. NEXT is particularly relevant in high-speed applications like Gigabit Ethernet, where the integrity of the signal is crucial for maintaining reliable connectivity and high data transfer rates.

Near End Crosstalk (NEXT) can occur due to several factors, including :

Twisted Pair Design

Ethernet cables typically consist of multiple twisted pairs of wires. Each pair is twisted to reduce crosstalk. However, if the twists are not tight enough or if the cables are poorly manufactured, crosstalk can occur more easily.

Termination Issues

Improper termination of cables can lead to signal reflections and crosstalk. Incorrectly installed connectors or terminations that do not maintain the twisted pair configuration can cause signal degradation and increase NEXT.

Signal Frequency

Higher-frequency signals, such as those used in Gigabit Ethernet or higher-speed networks, are more prone to crosstalk. As data rates increase, the likelihood of interference between adjacent pairs also rises.

Environmental Factors

External factors such as electromagnetic interference from nearby electrical equipment, radio frequency interference, or even nearby power cables can induce crosstalk in Ethernet cables.

Understanding these potential causes of Near End Crosstalk is crucial for network engineers and technicians to effectively diagnose and mitigate crosstalk issues in Ethernet networks, ensuring reliable data transmission and optimal network performance.
