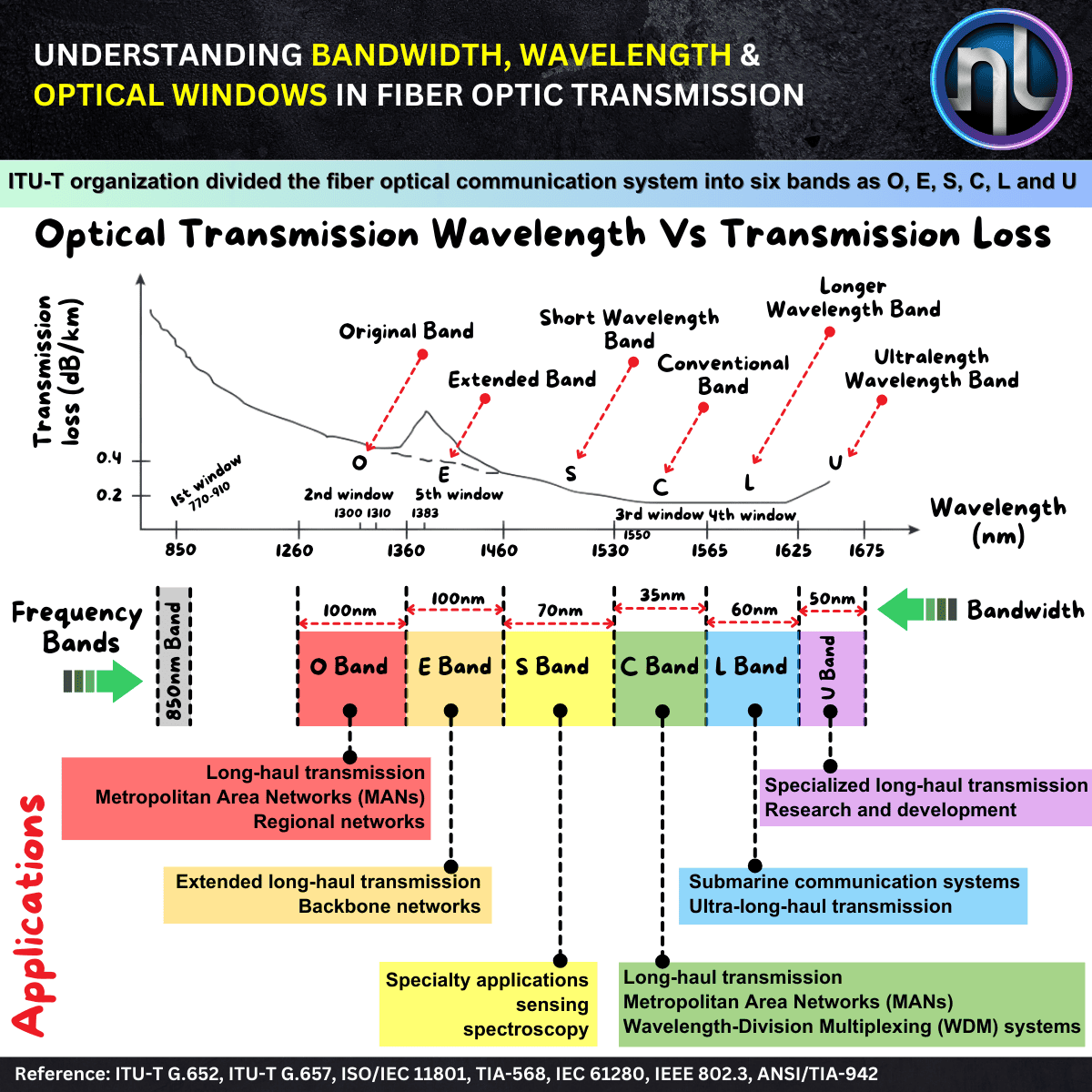

Fiber Optics | Informative Understanding Bandwidth, Wavelength, and Optical Windows in Fiber Optic Transmission Fiber optic communication is the backbone of modern high-speed data networks. To fully leverage its capabilities, it’s essential to understand three foundational concepts: Bandwidth, Wavelength, and Optical Windows. Bandwidth Definition Bandwidth refers to the capacity of a fiber optic cable to transmit data — much like the width of a highway determines how many vehicles can pass through at once. Measurement Typically measured in gigahertz (GHz) or gigabits per second (Gbps), it indicates the maximum amount of data that can flow through the cable within a given time. Importance Higher bandwidth supports faster, more reliable data transfer—critical for video streaming, cloud services, and large-scale telecom networks. Wavelength Definition Wavelength represents the specific “color” of light used to send data through the fiber, measured in nanometers (nm). Function Technologies like Wavelength-Division Multiplexing (WDM) allow multiple wavelengths to travel simultaneously within a single fiber, enabling multiple data streams. Common Wavelengths 850 nm – Typically used in multimode fiber for short-range applications 1310 nm – Ideal for long-distance transmission due to low dispersion 1550 nm – Preferred for long-haul systems due to minimal signal loss Optical Window Definition An optical window is the range of wavelengths where signal loss (attenuation) and signal spreading (dispersion) are minimal, allowing efficient transmission. Analogy Like a clear section of glass that lets light pass through with minimal distortion. Design Focus Fiber cables are optimized for the 850 nm, 1310 nm, and 1550 nm windows, which offer low attenuation and are best suited for different network needs. Summary ☑ Bandwidth defines how much data the cable can carry.☑ Wavelength indicates the light signal used for data transmission.☑ Optical Window ensures data travels efficiently with minimal loss. Together, these factors form the core of high-performance fiber optic networks, enabling fast, scalable, and reliable communication.
