InFOSE Inline Fiber Optic Splice Enclosure, 96F Capacity, Mechanical Seal, 6 In-Out Round Ports (PC)

N151.IF006

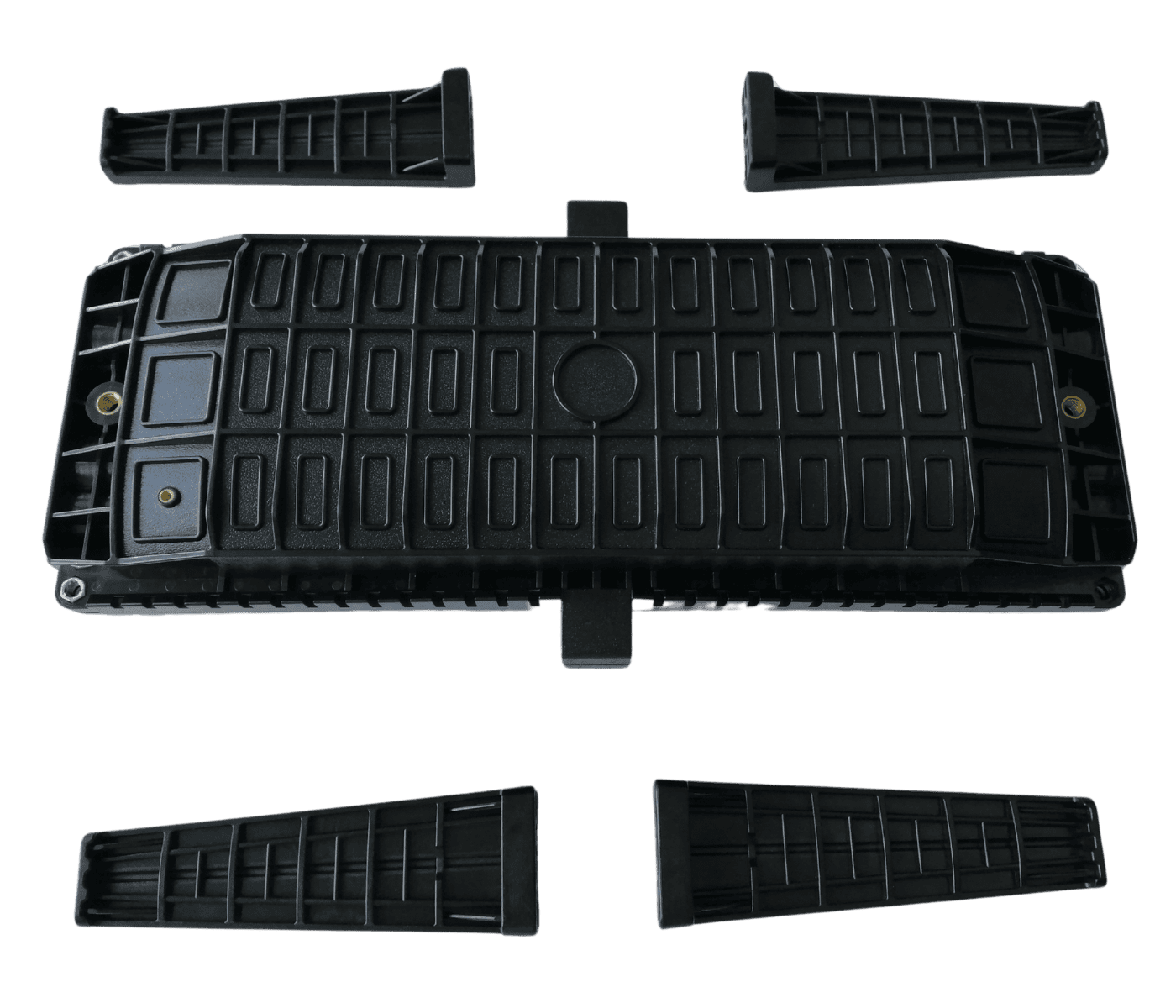

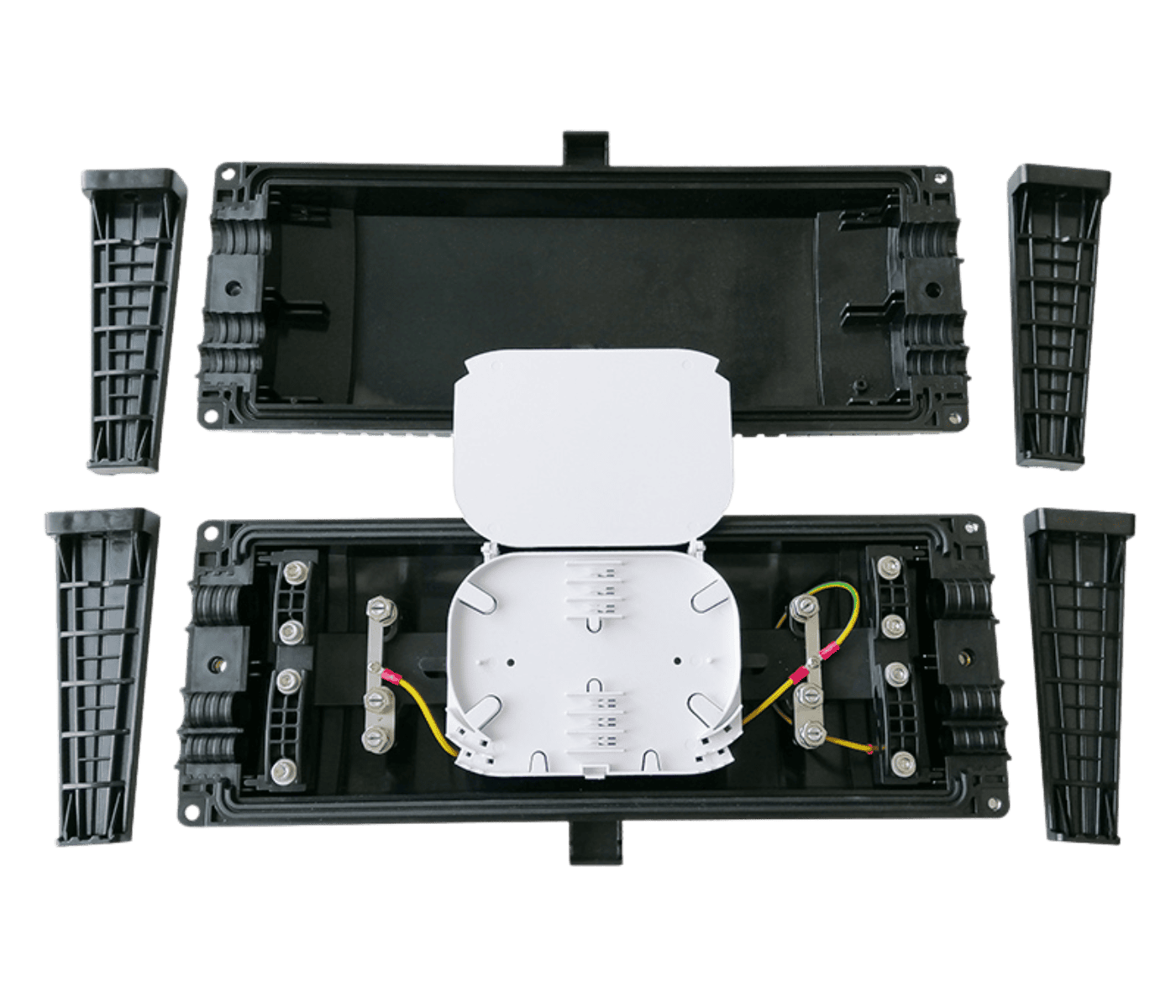

The InFOSE Inline Fiber Optic Splice Enclosure is a high-performance fiber splicing and protection solution designed for outdoor applications. Constructed from premium-quality PC plastic, this enclosure offers superior impact resistance, weatherproofing, and durability. With 6 in-out round ports supporting cable diameters of Ф23mm, Ф19.5mm, and Ф16mm, it accommodates up to 96 fibers, utilizing 4 splice trays (24F per tray). The mechanical sealing system, filled with a durable sealing material, allows secure closure, re-entry, and reuse without needing new sealing material. Designed for aerial-hanging and wall-mount installations, this enclosure is ideal for FTTH networks, backbone fiber infrastructure, and access networks.

How To Buy

Download Spec Sheet

  • 96F Capacity : Supports up to 96 fibers with 4 splice trays (24F per tray).
  • Mechanical Sealing System : Ensures secure closure and allows re-entry without replacing sealing material.
  • 6 In-Out Round Ports : Compatible with fiber cables of Ф23mm, Ф19.5mm, and Ф16mm diameters.
  • Durable PC Plastic Construction : Lightweight, impact-resistant, and weatherproof for long-term outdoor use.
  • Versatile Mounting Options : Aerial-hanged, wall-mounted deployments.
  • Weatherproof Protection : Resistant to dust, moisture, and extreme temperatures for enhanced fiber longevity.

Material Specifications

Dimensions 450 × 216 × 110 mm
Weight 2.8 kg
Material High-quality PC plastic
Cable Entry Ports 6 (3 In, 3 Out)
Supported Cable Diameter 2 Ports : Ф23mm, 2 Ports : Ф19.5mm, 2 Ports : Ф16mm
Splice Tray Capacity 24F
No. of Splice Trays 4 Trays
Maximum Fiber Capacity 96 Fibers
Sealing Mechanism Mechanical Sealing with Sealing Material
IP Rating IP65
Installation Method Aerial-Hanged, Wall-Mounted

Environmental Specifications

Operating Temperature Range -5°C to +40°C
Storage Temperature Range - 40°C to 70°C
