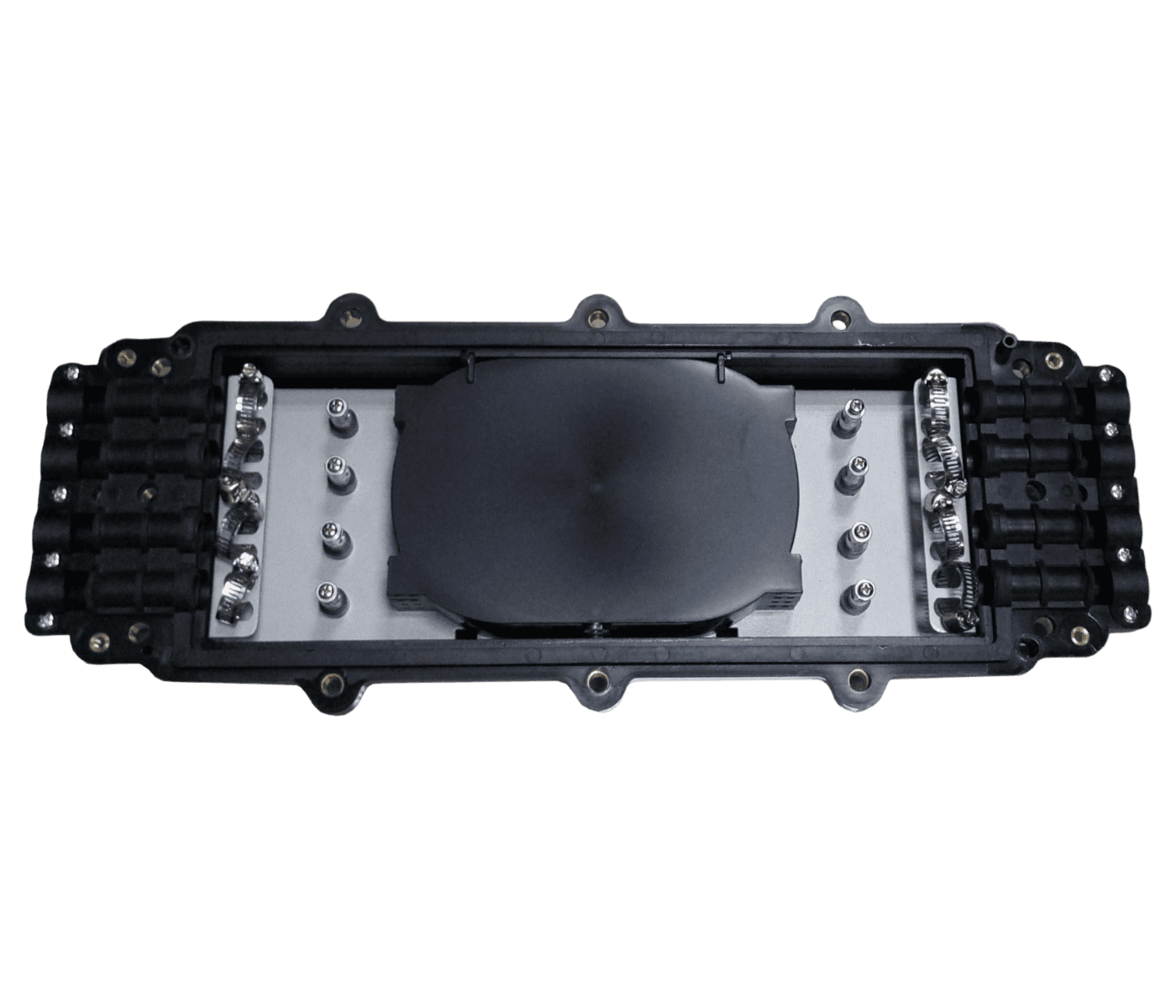

InFOSE Inline Fiber Optic Splice Enclosure, 144F Capacity, Mechanical Seal, 8 In-Out Round Ports (ABS)

N151.IF005

The InFOSE Inline Fiber Optic Splice Enclosure is designed for secure fiber optic splicing, protection, and cable distribution in outdoor environments. Constructed from high-quality ABS plastic, it offers durability, impact resistance, and environmental protection. Equipped with 8 in-out round ports, this enclosure supports fiber cable diameters ranging from Ф8mm to Ф16mm. It accommodates up to 144 fibers with 6 splice trays (24F per tray). The mechanical sealing system, filled with silicone rubber insulation tape, ensures a reliable, reusable, and weather-resistant closure. Ideal for aerial and wall-mounted installations, this enclosure is suitable for FTTH, access networks, and backbone fiber infrastructure.

How To Buy

Download Spec Sheet

  • 144F Capacity : Supports up to 144 fibers with 6 splice trays (24F per tray, double-layer tube supported).
  • Mechanical Sealing with Silicone Rubber : Ensures dustproof and waterproof performance, allowing re-entry and reuse without changing sealing material.
  • 8 In-Out Round Ports : Compatible with fiber cables ranging from Ф8mm to Ф16mm.
  • Durable ABS Construction : Lightweight, corrosion-resistant, and impact-resistant for long-term outdoor use.
  • Versatile Mounting Options : Aerial-hanged, wall-mounted deployments.
  • Environmental Protection : Sealing structure with silicone gum material or sticky cincture, ensuring enhanced weather resistance.

Material Specifications

Dimensions 466.5 × 179.8 × 120.6 mm
Weight 2.8 kg
Material High-quality ABS plastic
Cable Entry Ports 8 (4 In, 4 Out)
Supported Cable Diameter Ф8mm – Ф16mm
Splice Tray Capacity 24F
No. of Splice Trays 6 Trays
Maximum Fiber Capacity 144 Fibers
Sealing Mechanism Mechanical Sealing with Silicone Gum / Sticky Cincture
IP Rating IP65
Installation Method Aerial-Hanged, Wall-Mounted

Environmental Specifications

Operating Temperature Range -5°C to +40°C
Storage Temperature Range - 40°C to 70°C
