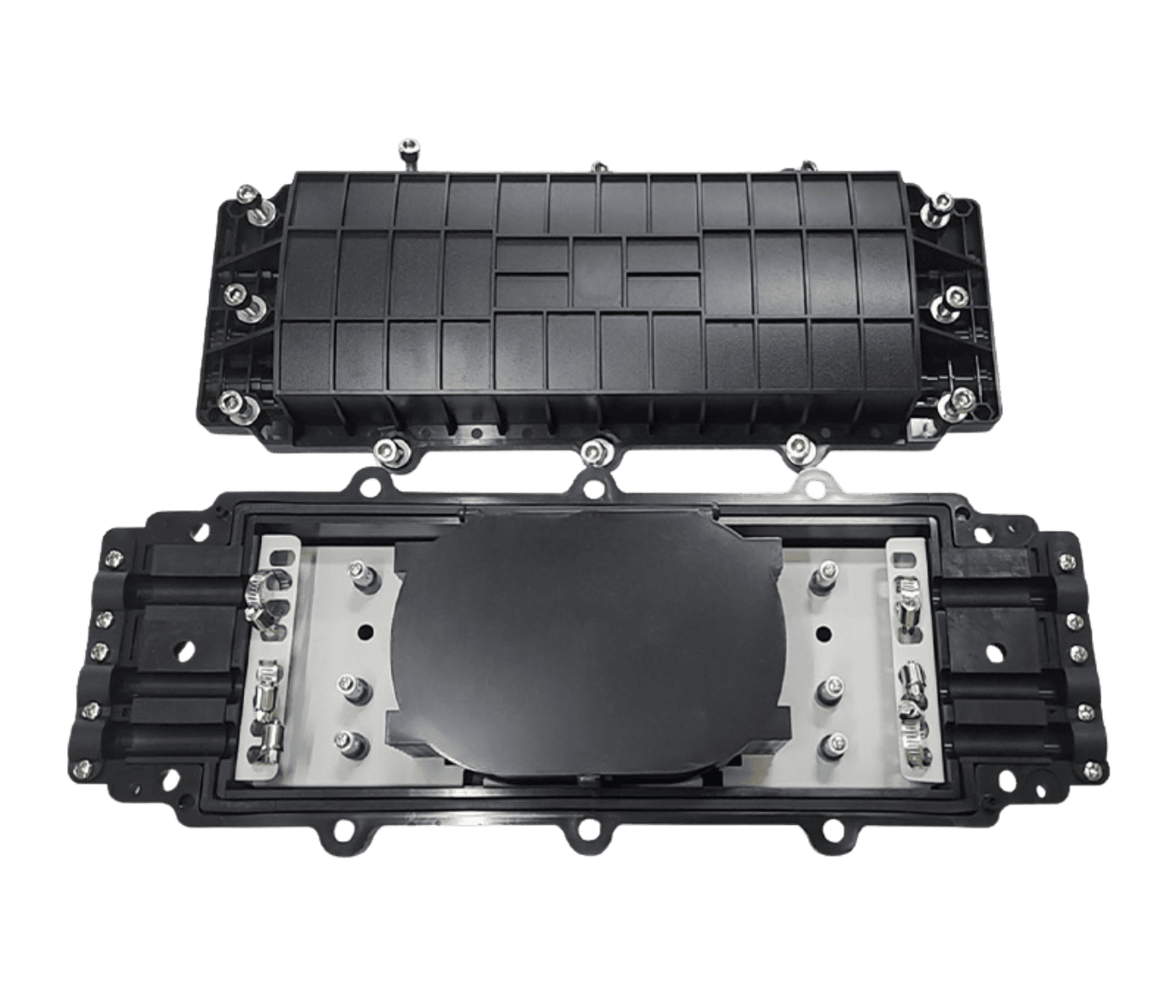

InFOSE Inline Fiber Optic Splice Enclosure, 144F Capacity, Mechanical Seal, 6 In-Out Round Ports (ABS)

N151.IF003

The InFOSE Inline Fiber Optic Splice Enclosure is a high-capacity fiber splice closure designed for efficient fiber optic splicing, protection, and cable distribution. Made from high-quality ABS plastic, it ensures durability, lightweight handling, and excellent environmental resistance. With 6 in-out round ports, this enclosure supports fiber cables with diameters ranging from Ф13mm to Ф15mm. It accommodates up to 144 fibers using 6 splice trays (24F per tray). The mechanical sealing system, filled with silicone rubber insulation tape, provides a secure, reusable seal while allowing easy access for maintenance and reconfiguration. Designed for aerial and wall-mounted installations, this enclosure is ideal for FTTH, access networks, and backbone fiber infrastructure.

How To Buy

Download Spec Sheet

  • 144F Capacity : Supports up to 144 fibers with 6 splice trays (24F per tray, double-layer tube supported).
  • Mechanical Sealing with Silicone Rubber : Ensures dustproof and waterproof performance while allowing re-entry and reuse without changing sealing material.
  • 6 In-Out Round Ports : Compatible with fiber cables ranging from Ф13mm to Ф15mm.
  • Durable ABS Construction : Impact-resistant, lightweight, and corrosion-resistant for long-term outdoor use.
  • Versatile Mounting Options : Aerial-hanged, wall-mounted deployments.
  • Environmental Protection : Sealing structure with silicone gum material or sticky cincture, ensuring enhanced weather resistance.

Material Specifications

Dimensions 466.5 × 179.8 × 120.6 mm
Weight 2.7 kg
Material High-quality ABS plastic
Cable Entry Ports 6 (3 In, 3 Out)
Supported Cable Diameter Ф13mm – Ф15mm
Splice Tray Capacity 24F
No. of Splice Trays 6 Trays
Maximum Fiber Capacity 144 Fibers
Sealing Mechanism Mechanical Sealing with Silicone Gum / Sticky Cincture
IP Rating IP65
Installation Method Aerial-Hanged, Wall-Mounted

Environmental Specifications

Operating Temperature Range -5°C to +40°C
Storage Temperature Range - 40°C to 70°C
