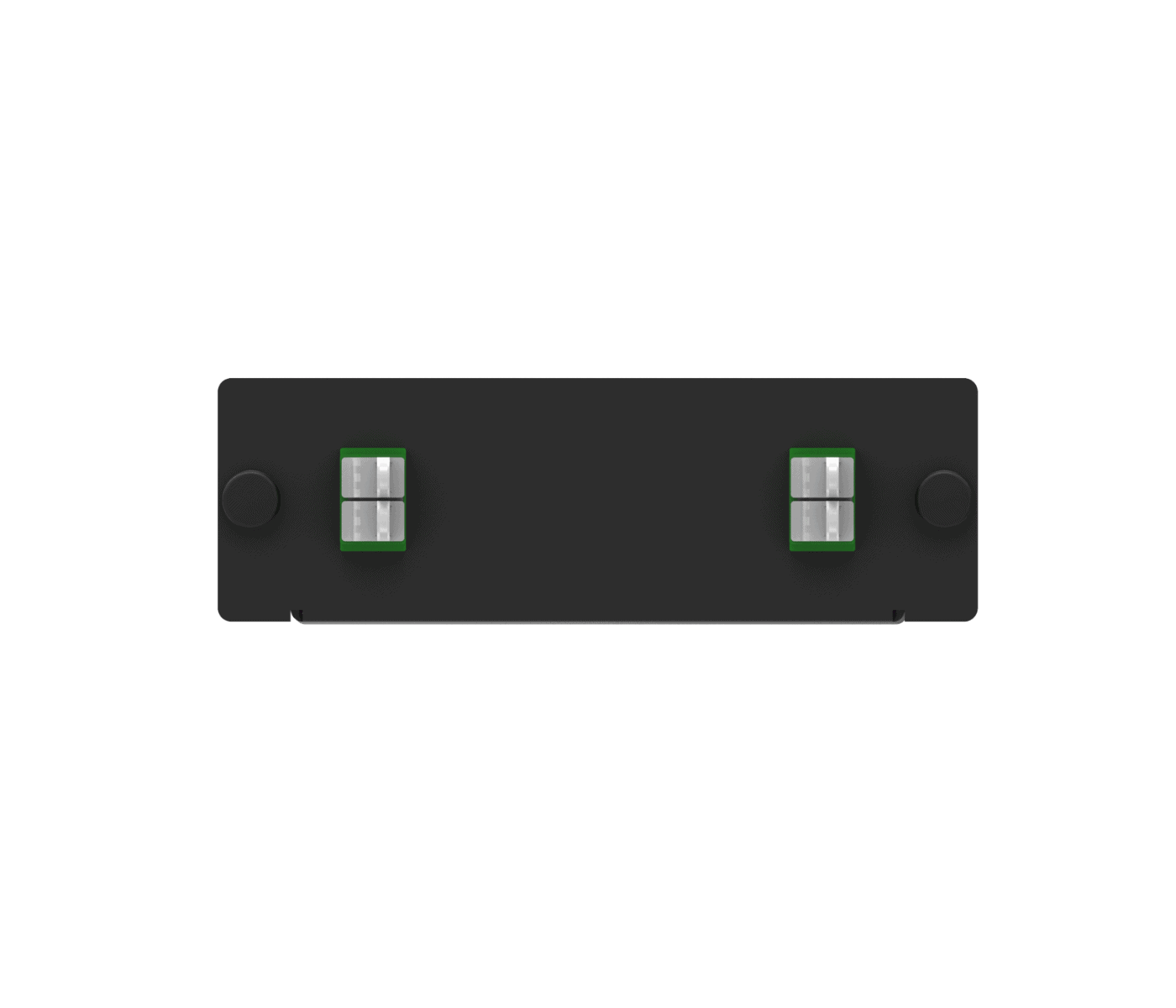

FotonGuide PLC Splitter Cassette, 2×2 LC/APC

N169.22LCABK

The FotonGuide PLC Splitter Cassette (2×2, LC/APC) is a high-performance, compact optical power distribution module designed for fiber optic networks, data centers, and FTTx applications. Utilizing Planar Lightwave Circuit (PLC) technology, this cassette provides even signal splitting from two input fibers to two output fibers, ensuring low insertion loss, high return loss, and excellent stability. The pre-terminated LC/APC connectors guarantee reliable, low-reflection connections, making this cassette ideal for applications requiring redundant fiber paths or signal duplication. It is designed to fit seamlessly into the FotonGuide Fiber Optic Splitter Chassis (3RU, 19” rack mount) for structured fiber management.

How To Buy

Download Spec Sheet

  • Compact & Modular Design : Space-efficient plug-and-play cassette for structured fiber distribution.
  • 2×2 PLC Splitter : Evenly splits two input fibers into two output fibers with minimal optical loss.
  • High Optical Performance : Low insertion loss, high return loss, and minimal polarization-dependent loss (PDL).
  • Pre-terminated LC/APC Connectors : Ensures low back reflection and high-precision connections.
  • Rugged & Durable Construction : Enclosed in a protective cassette housing for enhanced durability and easy handling.
  • Effortless Installation : Designed for seamless integration into FotonGuide Fiber Optic Splitter Chassis (3RU, 19”).
  • Reliable & Stable : Supports wide wavelength operation (1260nm – 1650nm) with exceptional long-term reliability.

Material Specifications

Split Capacity 2x2
Compatability FotonGuide Fiber Optic Splitter Chassis (3RU, 19” rack mount)
Connector Type LC/APC
Fiber Type G657A1
Working Wavelength 1260nm~1650nm
Insertion Loss(P-Grade)(dB) ≤ 4.2
Uniformity(dB) ≤ 0.8
PDL(dB) ≤ 0.2
Wavelength Dependent Loss(dB) ≤ 0.8
Return Loss(dB) ≥ 55
Directivity(dB) ≥ 55

Environmental Specifications

Operating Temperature Range - 40°C to 85°C
Storage Temperature Range - 40°C to 85°C

Item Dimension
Product Width : 35 mm
Height : 109 mm
Depth : 159.7 mm
