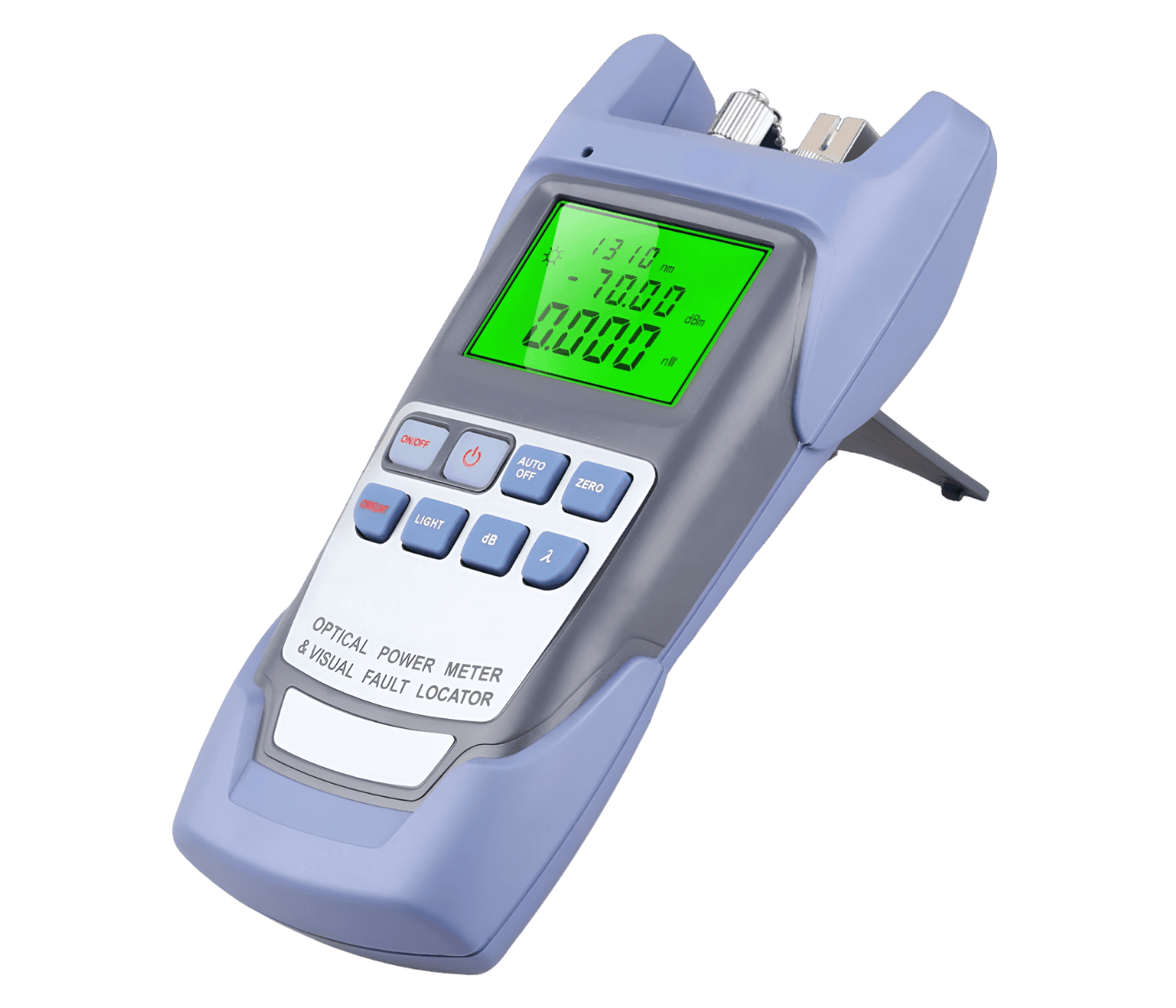

Handheld GPON Optical Power Meter with Laser Source & Visual Fault Locator

N723.OPMVFL

The Handheld GPON Optical Power Meter combines a precise optical power meter and a visual fault locator, designed for installation, operation, and maintenance of fiber optic networks. Its compact, durable design features a large LED backlit screen, super wide test range, and accurate testing capabilities. The integrated 10mW visual fault locator can measure distances up to 10 kilometers, making it ideal for various fiber optic applications including CATV, CCTV, and communication engineering.

  • Practical and Compact Design : Portable, easy to carry with a large screen and LED backlight.
  • Integrated Functions : Combines optical power meter and visual fault locator in one device.
  • Wide Wavelength Range : Measures multiple wavelengths (850/980/1300/1310/1490/1550/1625nm) with a test range of -70dBm to +10dBm.
  • Visual Fault Locator : 10mW power can locate faults up to 10 kilometers away.

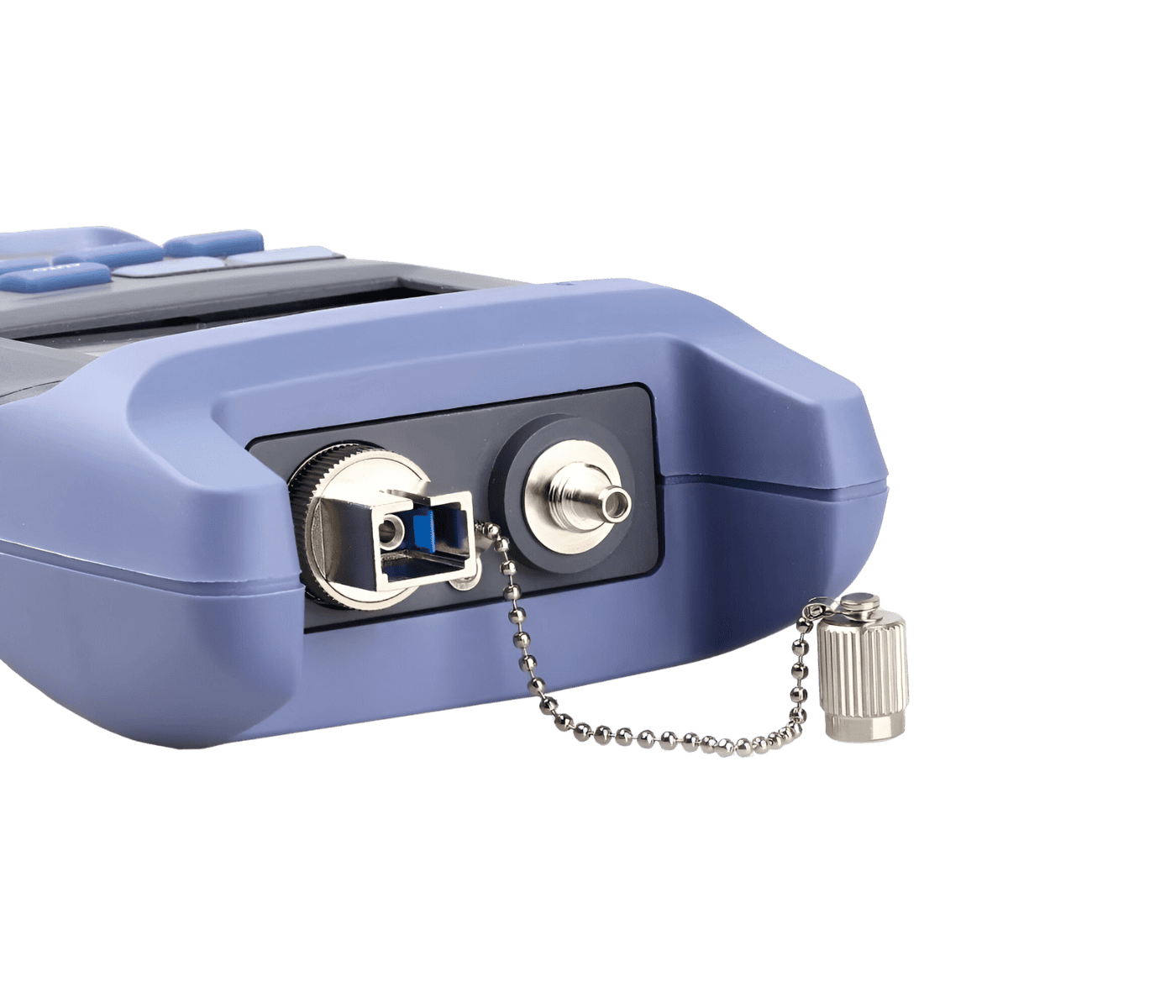

  • With Connectors: FC/SC Type - Anti-shock and anti-fall for added durability and protection.
  • Long Standby Time : 48 Hours
  • User-Friendly Interface : Features automatic calibration and a general interface design for easy use.

Material Specifications

Type wGPON Optical Power Meter with Visual Fault Locator
Optical Connectors Type FC/SC Type - Anti-shock and anti-fall
Test Wavelengths 850/980/1300/1310/1490/1550/1625nm
Test Range -70dBm to +10dBm
Visual Fault Locator Power 10mW, up to 10 kilometers
Display Large LED backlight
Auto Calibration Yes, new users auto-calibration function
Applications CATV, CCTV, communication engineering, integrated wiring, device production, testing
Warranty Period 1 Year

Environmental Specifications

Operating Temperature Range - 20°C to 60°C
Storage Temperature Range - 20°C to 60°C

Item Dimension Nominal Net Weight
Product 180mm
83mm
28mm
0.33Kg
