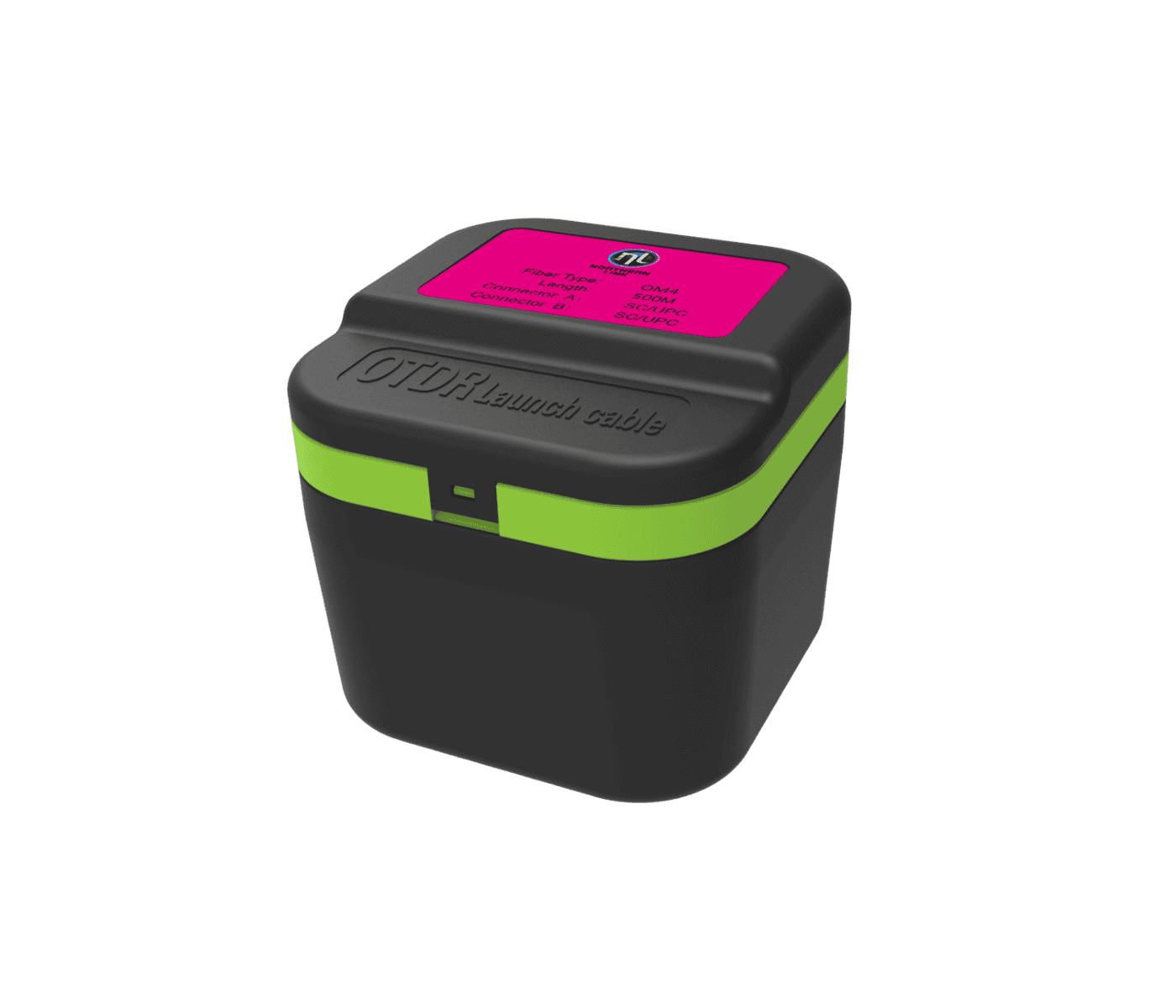

Compact OTDR Launch Cable, SC/UPC to SC/UPC, OM4

N723.OLCSCSC3yx

The Compact OTDR Launch Cable SC/UPC – SC/UPC, OM4, is designed for efficient OTDR testing with high-performance OM4 multimode fiber. This cable provides reliable and accurate test results, eliminating dead zones in fiber networks. Its compact and portable design, along with customizable connectors and built-in magnets, ensures flexibility and ease of use for both field and laboratory testing.

  • Compact & Portable : Lightweight and easy to carry
  • Connector Flexibility : Includes two splice positions, making connector types interchangeable (SC, LC, FC, ST, E2000).
  • Magnetic Attachment : Built-in magnets allow secure fixation on cabinets for ease of use.
  • Fiber Type : OM4 Multimode, optimized for high-speed data transmission over longer distances.
  • Length Options : Available in multiple lengths tailored to specific testing needs.
  • Durable Construction : Encased in a rugged, protective spool to withstand harsh testing environments.

Material Specifications

Fiber Type Multimode OM4
Fiber Length 100m, 300mm, 500mm
Connector Type SC/UPC to SC/UPC
Connector Compatibility SC, LC, FC, ST, E2000
Input & Output Diameter 2.0mm
Input & Output Length 1.5m
Splice Capacity 2 splice positions
Color of Housing Grey or Black
Connector Specification : Max Insertion Loss <0.15dB
Return Loss UPC>55dB
Apex Offset 0~30μm
Fiber Height ±50nm
Radius of Curvature (UPC) 7~25mm

Environmental Specifications

Operating Temperature Range - 20°C to 60°C
Storage Temperature Range -30°C to 70°C

Item Dimension
Product Width: 100mm
Depth : 100mm
Height: 90mm
