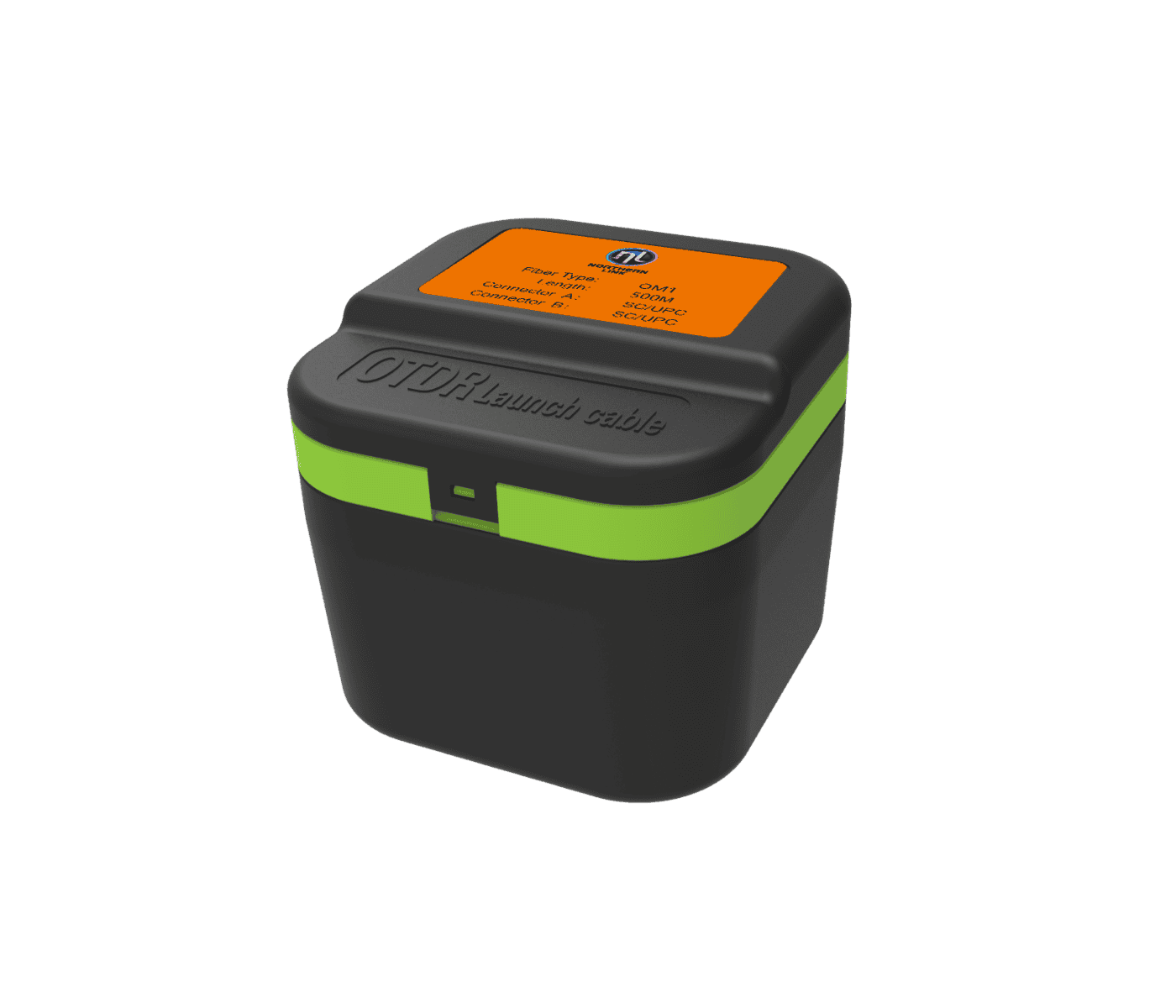

Compact OTDR Launch Cable, SC/UPC to SC/UPC, OM1

N723.OLCSCSC0yx

The Compact OTDR Launch Cable SC/UPC to SC/UPC, OM1 is an essential tool for fiber optic testing, designed to minimize the dead zone effect during OTDR testing. Built for precision and durability, this high-quality launch cable ensures accurate reflection measurements and enhanced test performance for multimode fiber applications. Designed for versatility, it features two splice positions for interchangeable connectors, built-in magnets for cabinet attachment, and a durable, portable housing.

  • Compact & Portable : Lightweight and easy to carry
  • Connector Flexibility : Includes two splice positions, making connector types interchangeable (SC, LC, FC, ST, E2000).
  • Magnetic Attachment : Built-in magnets allow secure fixation on cabinets for ease of use.
  • Fiber Type : OM1 Multimode, ideal for short-distance fiber optic networks.
  • Length Options : Available in various lengths to suit diverse testing requirements.
  • Durable Construction : Encased in a rugged, protective spool to withstand harsh testing environments.

Material Specifications

Fiber Type Multimode OM1
Fiber Length 100m, 300mm, 500mm
Connector Type SC/UPC to SC/UPC
Connector Compatibility SC, LC, FC, ST, E2000
Input & Output Diameter 2.0mm
Input & Output Length 1.5m
Splice Capacity 2 splice positions
Color of Housing Grey or Black
Connector Specification : Max Insertion Loss <0.15dB
Return Loss UPC>55dB
Apex Offset 0~30μm
Fiber Height ±50nm
Radius of Curvature (UPC) 7~25mm

Environmental Specifications

Operating Temperature Range - 20°C to 60°C
Storage Temperature Range -30°C to 70°C

Item Dimension
Product Width: 100mm
Depth : 100mm
Height: 90mm
