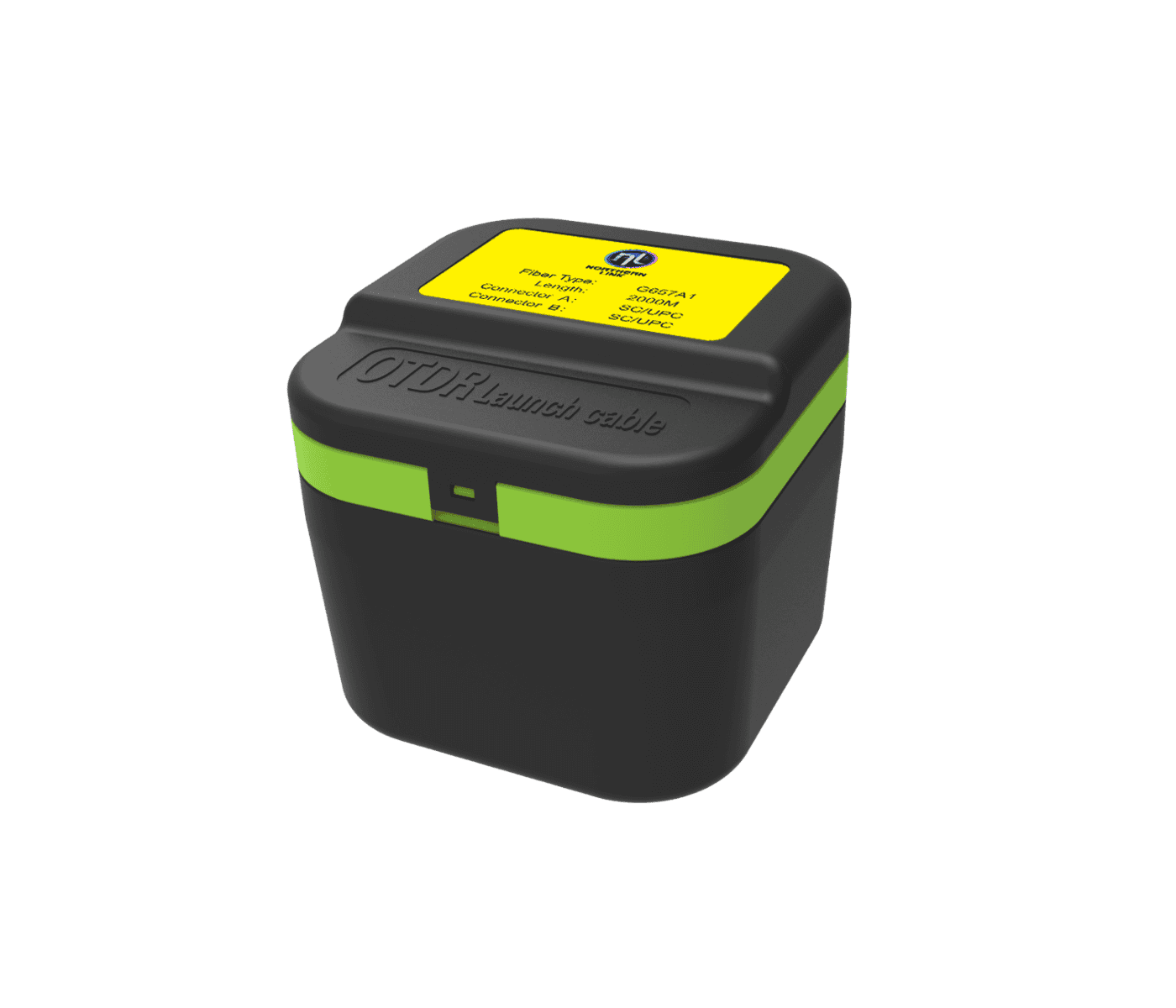

Compact OTDR Launch Cable, SC/UPC to SC/UPC, SM G.657A1

N723.OLCSCSC5A1yx

This compact OTDR launch cable comes with single-mode G.657A1 fiber with SC/UPC to SC/UPC connectors for precise fiber optic testing. Designed for versatility, it features two splice positions for interchangeable connectors, built-in magnets for cabinet attachment, and a durable, portable housing.

  • Compact & Portable : Lightweight and easy to carry
  • Connector Flexibility : Includes two splice positions, making connector types interchangeable (SC, LC, FC, ST, E2000).
  • Magnetic Attachment : Built-in magnets allow secure fixation on cabinets for ease of use.
  • High-Performance Fiber : Single Mode G.657A1 fiber ensures low-loss testing.
  • Durable Design : Available in grey or black with robust housing to withstand field conditions.

Material Specifications

Fiber Type Single Mode G.657A1
Fiber Length 100m, 300mm, 500mm, 1000m, 1500m, 2000m
Connector Type SC/UPC to SC/UPC
Connector Compatibility SC, LC, FC, ST, E2000
Input & Output Diameter 2.0mm
Input & Output Length 1.5m
Splice Capacity 2 splice positions
Color of Housing Grey or Black
Connector Specification : Max Insertion Loss <0.15dB
Return Loss UPC>55dB
Apex Offset 0~30μm
Fiber Height ±50nm
Radius of Curvature (UPC) 7~25mm

Environmental Specifications

Operating Temperature Range - 20°C to 60°C
Storage Temperature Range -30°C to 70°C

Item Dimension
Product Width: 100mm
Depth : 100mm
Height: 90mm
