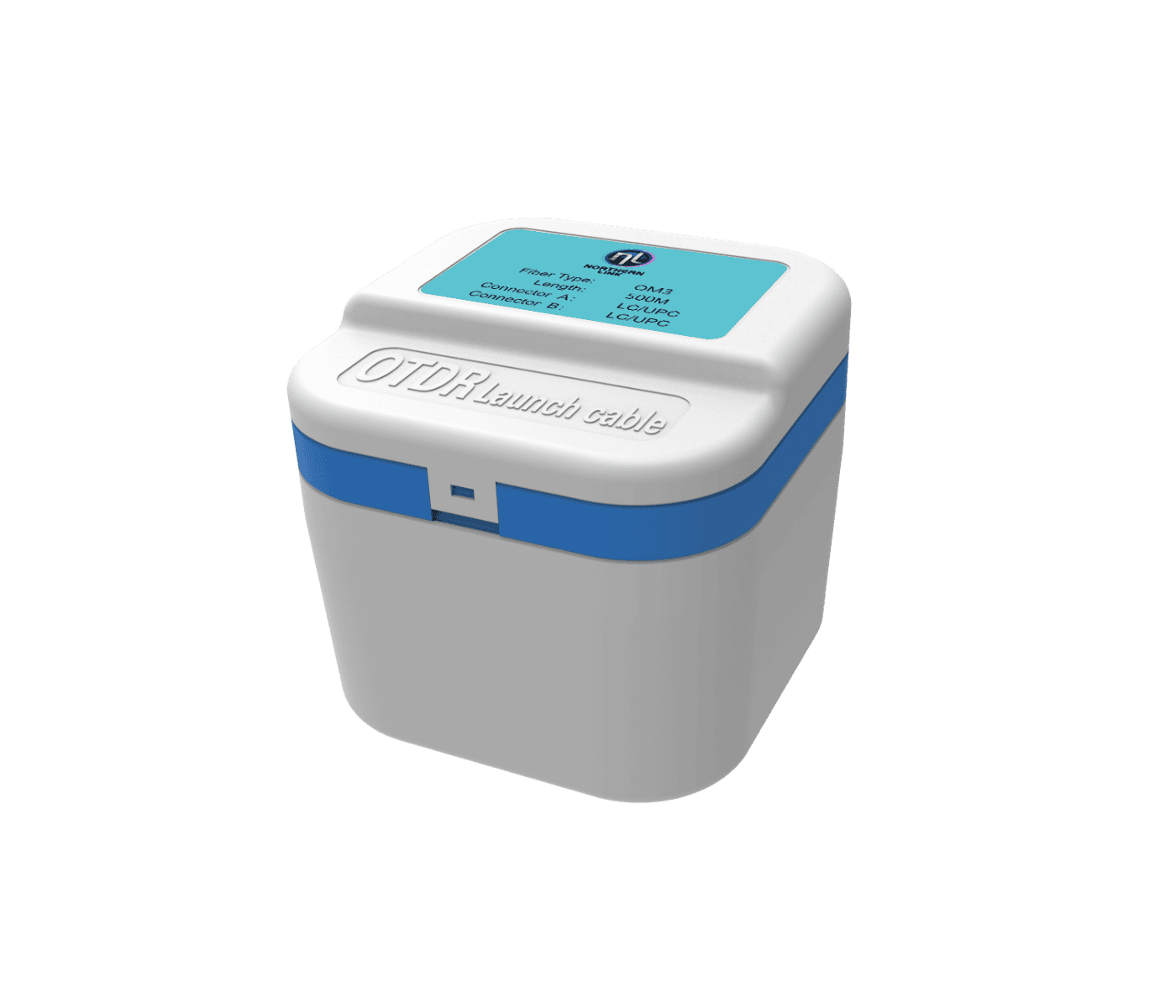

Compact OTDR Launch Cable, LC/UPC to LC/UPC, OM3

N723.OLCLCLC2yx

The Compact OTDR Launch Cable LC/UPC – LC/UPC, OM3, is a robust fiber optic testing tool designed to enhance the accuracy of OTDR measurements. Featuring OM3 multimode fiber, it eliminates dead zones and ensures precise trace results. Its compact design, interchangeable connectors, and built-in magnets make it a versatile and portable solution for fieldwork and laboratory environments.

  • Compact & Portable : Lightweight and easy to carry
  • Connector Flexibility : Includes two splice positions, making connector types interchangeable (SC, LC, FC, ST, E2000).
  • Magnetic Attachment : Built-in magnets allow secure fixation on cabinets for ease of use.
  • Fiber Type : OM3 Multimode, ideal for high-speed network applications.
  • Length Options : Available in various lengths to suit diverse testing requirements.
  • Durable Construction : Encased in a rugged, protective spool to withstand harsh testing environments.

Material Specifications

Fiber Type Multimode OM3
Fiber Length 100m, 300mm, 500mm
Connector Type LC/UPC to LC/UPC
Connector Compatibility SC, LC, FC, ST, E2000
Input & Output Diameter 2.0mm
Input & Output Length 1.5m
Splice Capacity 2 splice positions
Color of Housing Grey or Black
Connector Specification : Max Insertion Loss <0.15dB
Return Loss UPC>55dB
Apex Offset 0~30μm
Fiber Height ±50nm
Radius of Curvature (UPC) 7~25mm

Environmental Specifications

Operating Temperature Range - 20°C to 60°C
Storage Temperature Range -30°C to 70°C

Item Dimension
Product Width: 100mm
Depth : 100mm
Height: 90mm
