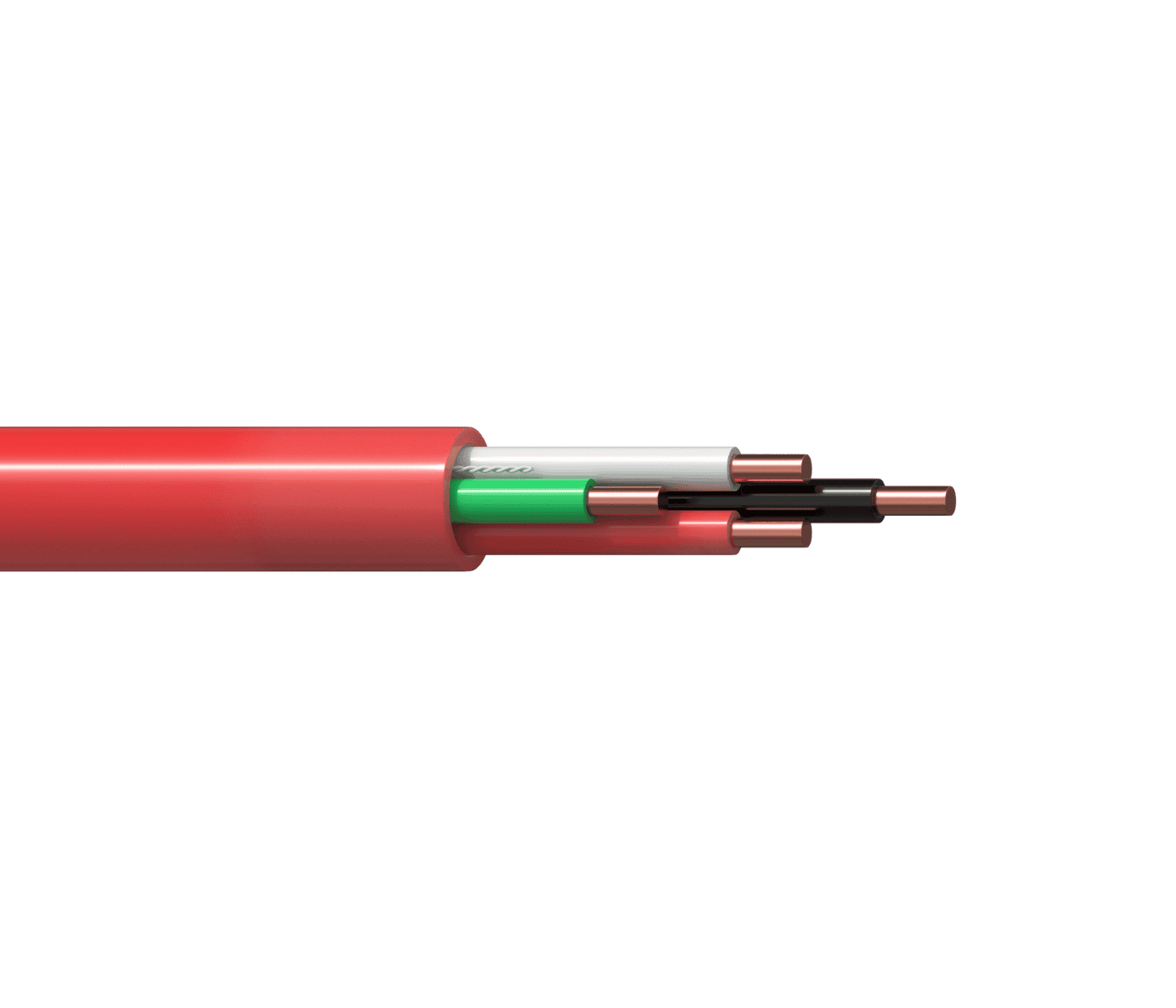

Orion Alarm Cable, 22AWG, 4C, Solid BC, CMG UL Listed FT4, PVC Jacket

N86.224PV10x(P)

The Orion Alarm Cable, featuring a 22AWG, 4-Conductor configuration, is an ideal solution for alarm, security, and low-voltage applications. Designed for high-performance and reliability, this cable is constructed with solid bare copper (BC) conductors to ensure superior signal transmission and durability. It is CMG UL Listed FT4, making it compliant with fire safety standards for general use in buildings, providing peace of mind in the event of a fire. The PVC jacket offers excellent protection against environmental stressors, ensuring longevity and stability even in harsh conditions.

This versatile alarm cable is perfect for connecting various alarm systems, including fire, security, and surveillance systems. It provides excellent protection against interference, maintaining signal integrity over long distances.

How To Buy

Download Spec Sheet

  • Conductor Type : 22AWG, 4-Conductor, Solid Bare Copper (BC) – Ensures reliable conductivity and signal transmission.
  • Fire Rating : CMG UL Listed FT4 – Meets stringent fire safety codes for general use in buildings.
  • Insulation : PVC Jacket – Durable, flexible, and provides robust protection against mechanical and environmental stress.
  • Application : Ideal for alarm, security, fire, and surveillance systems requiring low-voltage wiring.
  • Temperature Rating : Rated for operation in temperatures up to 75°C (167°F), making it suitable for a wide range of environments.
  • Durability : Designed to withstand tough environments while maintaining excellent signal performance.
  • Color Coding : Typically, the four conductors are color-coded for easy identification during installation.
  • Compliance : UL Listed for safety and quality assurance.

Material Specifications

Conductor Material BC (Bare Copper)
Conductor Construction (mm) 1 / 0.63 ± 0.01
Insulation Material PVC
Diameter (mm) 1.05 ± 0.05
Average Thickness (mm) 0.20
Color Black, Red, White, Green
Rip-cord Yes
Jacket Material PVC
Diameter (mm） 3.4 ± 0.2
Average Thickness (mm) 0.43
Color Black / Brown / Grey / Green / Red / White
Electrical & Physical Characteristics: Conductor DCR 20°C ≤59.1 Ω/KM
Voltage Rating 300V

Environmental Specifications

Temperature range Storage & shipping -20°C to 75°C
Installation 0°C to 60°C
Operation -20°C to 75°C
