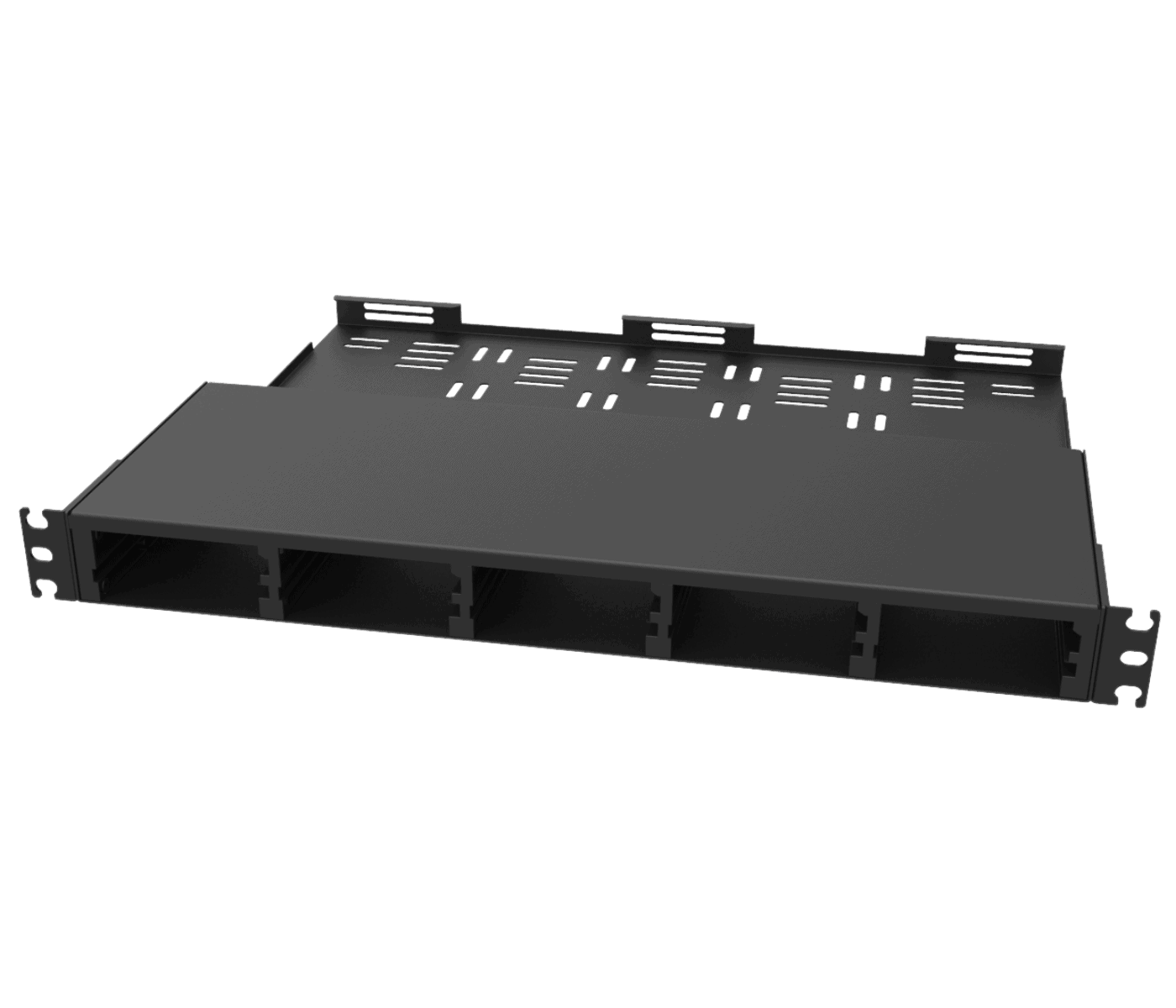

FotonShield MD Cassette Type Fiber Patch Panel (Empty), 19" 1RU - Fits 5 MD Cassettes with Front & Rear Organizer

N175.MDEM15CBK

The FotonShield MD Cassette Type Fiber Patch Panel is a medium-density (MD) fiber management solution designed for fiber optic access networks. It offers high fiber capacity in a compact 1RU 19-inch rack-mountable form, accommodating up to 5 MD cassettes, supporting a maximum of 60F (SC) or 120F (LC). This modular patch panel allows for flexible fiber management with multiple MD cassette configurations. It features removable front and rear organizers, ensuring clean cable routing and easy maintenance. The sturdy galvanized sheet metal body enhances durability, while the optimized design maximizes space efficiency.

How To Buy

Download Spec Sheet

  • Medium-Density Design : Supports 5 MD cassettes for high fiber capacity.
  • Optimized Space Utilization : Compact form factor with a 1RU 19-inch rack mount.
  • Flexible Capacity : Holds up to 60 fibers (SC) or 120 fibers (LC) for high-performance applications.
  • Modular Cassette System : Compatible with various FotonShield MD Cassette models.
  • Enhanced Cable Management : Detachable front and rear organizers for efficient fiber routing.
  • Sturdy Construction : Galvanized sheet metal for durability in demanding environments.
  • Fire-Resistant Build : Certified UL 94 V-0 for superior safety.
  • Easy Installation & Maintenance : Designed for quick cassette swapping and fiber reconfiguration.

Material Specifications

Height 1U
Rack Compatibility 19-inch standard rack
Dimensions (HxDxW) Shorter Version : 44 x 187.4 x 480 mm
With Rear Organizer : 44 x 362 x 480 mm
With Front & Rear Organizer : 44 x 462 x 480 mm
Cable Management Front & Rear Organizers (Removable) included
Capacity 5 MD Cassettes
Fiber Capacity SC : 60F, LC : 120F
Material Galvanized sheet metal
Color Black
Flammability Rating UL 94 V-0

Environmental Specifications

Operating Temperature Range - 20°C to 70°C
Storage Temperature Range - 20°C to 70°C

Item Dimension
Product Width : 480 mm
Height : 44 mm
Depth : 462 mm
