Infinity RG6 Coaxial Cable, Direct Burial, Quad Shield, 18AWG CCS

N216.S2PEB(10R)

Infinity RG6 Coaxial Cable, Quad Shield, Direct Burial is engineered for superior performance in outdoor installations. With an 18AWG solid copper-clad steel (CCS) conductor, four-layer shielding (aluminum foil and ALMG braid), and a durable gel-coated PE jacket, this cable ensures excellent signal integrity and protection against environmental factors. Designed for 75 Ohm applications, it is perfect for satellite TV, cable internet, and surveillance systems requiring long-lasting durability and reliability.

How To Buy

Download Spec Sheet

  • Quad Shield Design : Includes AL foil + 60% ALMG braid + AL foil + 40% ALMG braid for exceptional EMI/RFI protection.
  • Direct Burial Rated : Gel-coated PE jacket protects against moisture, dirt, and other underground hazards.
  • 18AWG Solid CCS Conductor : Ensures robust signal transmission over long distances.
  • High Signal Integrity : Maintains consistent 75 Ohm impedance, suitable for high-quality video, data, and broadband applications.

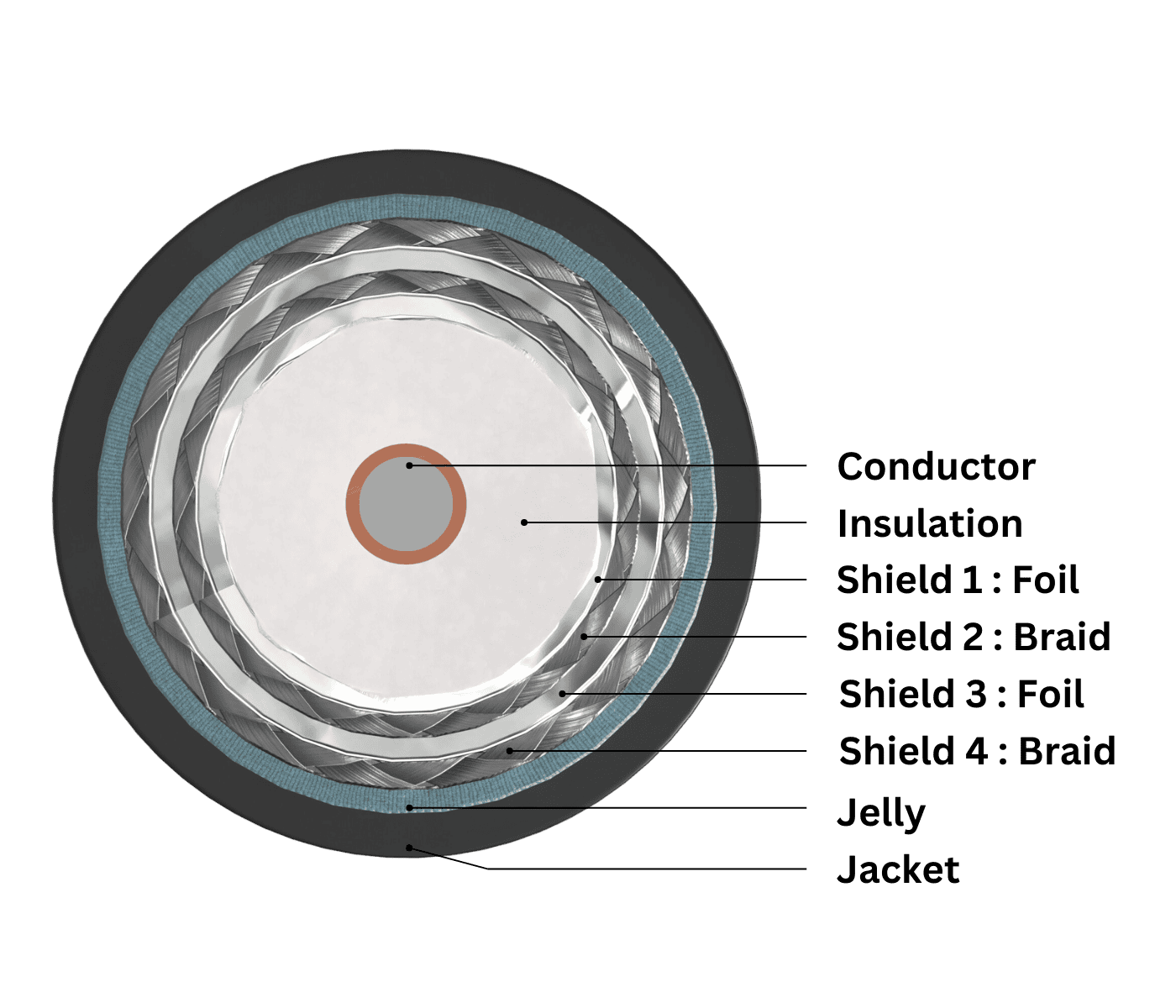

Material Specifications

Conductor Material CCS (Copper-Clad Steel)
Diameter (mm) 1.02 ± 0.01
Insulation Material Foam PE
Insulation Diameter (mm) 4.57±0.15
Average Thickness (mm) 1.75
Min. Thickness (mm) 1.65
Shield 1 Material AL/PET Bonded
Shield 2 Material ALMG Braid
Braid Coverage ≥ 60%
Shield 3 Material AL/PET/AL
Shield 4 Material ALMG Braid
Coverage ≥ 40%
Filler Material Jelly
Jacket Material PE
Diameter (mm) 7.4 ± 0.3
Average Thickness (mm) 0.75
Min. Thickness (mm) 0.70
Color Black
Electrical Characteristics :
Inner Conductor DCR 20°C ≤ 105Ω/KM
Characteristic Impedance (Ohm） 75 ± 3
Capacitance Conductor to Shield (pF/M） 53 ± 5

Environmental Specifications

Temperature range Storage & shipping -20°C to 90°C
Installation 0°C to 60°C
Operation -20°C to 90°C
