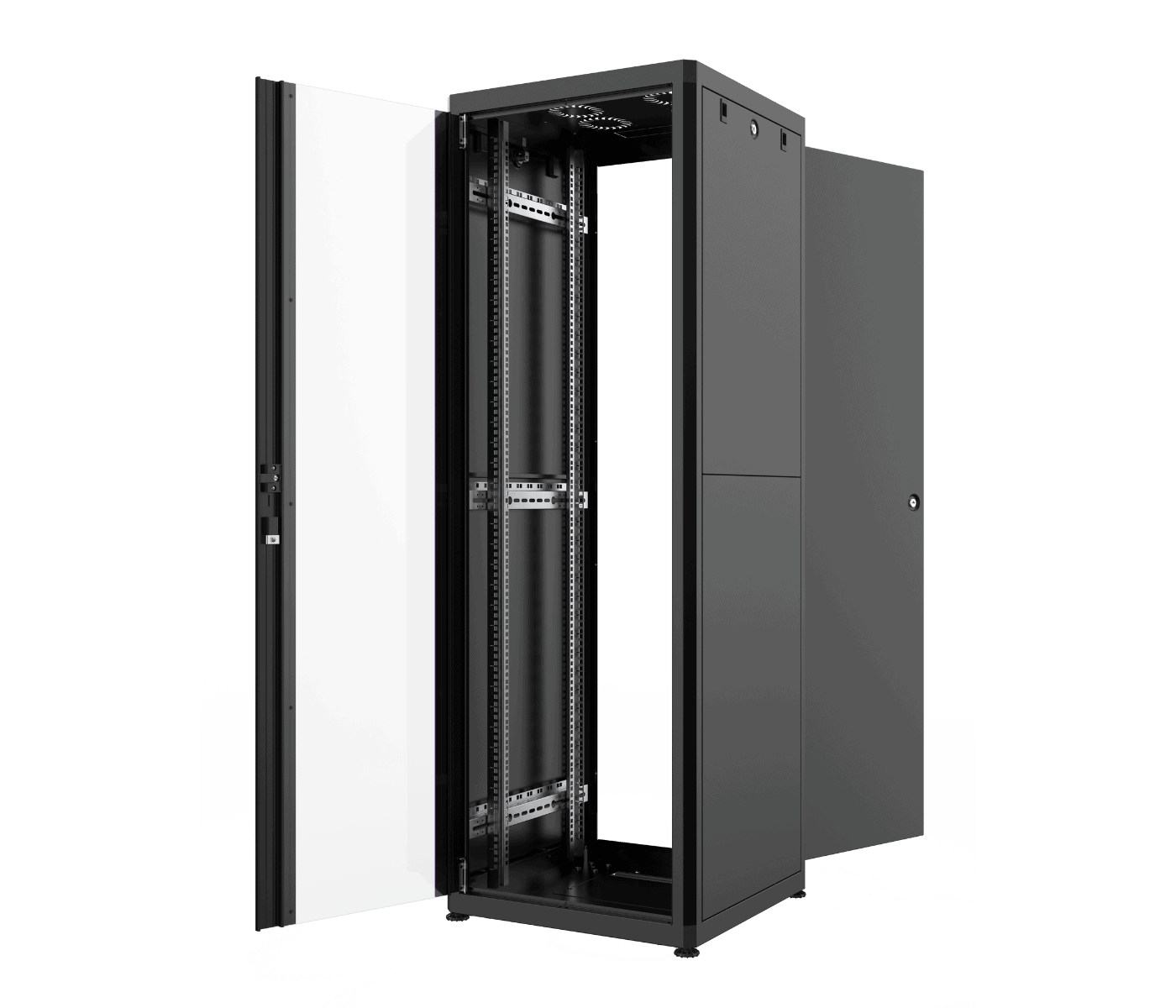

DataVault Rack W600xD600, Glass Front & Solid Metal Rear Door

N322.DVh66Axx

The DataVault Floor-Standing Rack is a versatile and durable solution for housing IT equipment in data centers and commercial environments. Designed with a sleek and functional layout, it ensures efficient cable management, optimal airflow, and robust security for critical equipment. Its compact width (600mm) and depth (600mm) make it ideal for installations with space constraints while maintaining easy access for maintenance.

How To Buy

Download Spec Sheet

  • Front Door : Single tempered glass door with Swing Handle Lock for visibility and security
  • Rear Door : Single solid metal door with a O-lock for added protection.
  • Durable Design : Sturdy steel construction with a powder-coated finish for long-lasting durability.
  • Cable Management : Includes a bottom sliding cable entry plate and top cable entry points for efficient cabling.
  • Customizable : Comes with 4 adjustable 19” mounting rails, marked with “U” spacing in both directions (top-to-bottom and bottom-to-top).
  • Side Panels : Split side panels with O-locks for easy access and added security.
  • Mobility & Stability : Comes with leveling feet; optional castors can be ordered separately.
  • Optional Side Brackets : Can be installed with optional 19” side brackets for vertically mounting equipment.

Material Specifications

Sizes Available 32U, 36U, 42U
Dimensions (W x D) 600mm x 600mm
Front Door Single tempered glass door with Swing Handle lock
Rear Door Single solid metal door with O-lock
Construction Material 1.2mm high-quality steel, powder-coated
Cable Entry Top and bottom entry points, including a bottom sliding cable entry plate
Mounting Rails 4 Nos. of adjustable 19” mounting rails
Weight Capacity Up to 800 kg
U Marking Available in both directions (top-to-bottom and bottom-to-top)
Side Panels Split side panels with O-locks
Ventilation Optional fan units can be installed, top perforations already available for Airflow
Mobility Options Comes with leveling feet; Optional castors should be ordered separately
Vertical Cable Managers Not available. Should be ordered separately

Environmental Specifications

Operating Temperature Range 5°C to 45°C
Storage Temperature Range -20°C to 60°C
