Data Centers | Informative

Micro Edge Data Centers: Type A vs. Type B (ANSI/TIA‑942‑C)

As edge computing grows, Micro Edge Data Centers (Micro EDCs)—small, modular facilities deployed closer to users and devices—are specified in the latest ANSI/TIA‑942‑C standard.

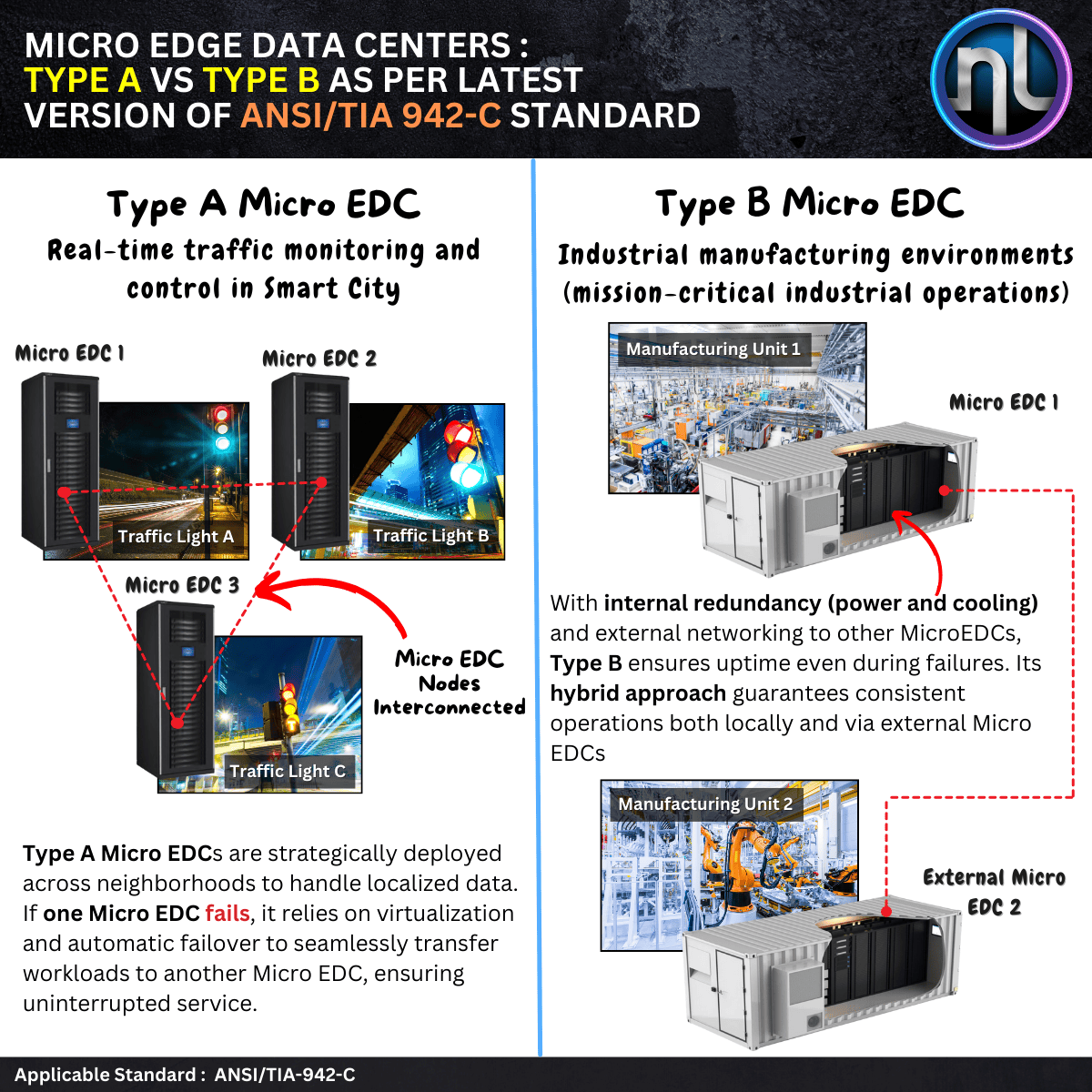

Two primary flavors emerge:

Type A Micro EDC

Optimized for Smart City & Low‑Latency Applications

Use Case : Neighborhood‑level deployments for traffic control, public transit coordination, autonomous vehicles, and real‑time IoT analytics.

  • External High Availability Model : No heavy internal UPS or cooling redundancy—high availability is achieved by virtualization and automatic failover across a network of Micro EDCs.
  • Cost‑Effective : Minimal on‑site infrastructure reduces capex/opex.
  • Low‑Latency : Localized compute keeps service delays under strict thresholds.
  • Resilient via Federation : If one site fails, workloads shift instantly to neighboring Micro EDCs.

Type B Micro EDC

Designed for Industrial & Mission‑Critical Environments

Use Case : Factory automation, robotics, AI‑driven quality control, and environments where localized failures cannot disrupt operations.

  • Internal Redundancy : Built‑in backup power (UPS/generator) and duplicate cooling systems ensure continuous operation on‑site.
  • Hybrid Failover : Retains own redundancy while linking to other Micro EDCs for secondary failover, maximizing uptime.
  • Higher Resilience : Supports mission‑critical loads without relying solely on the network.
  • Flexible Connectivity : Combines local compute reliability with external Micro EDC federation.

Choosing Between Type A & Type B

CriterionType AType B
Primary Use CaseSmart cities, IoT aggregationIndustrial automation, mission‑critical
Internal HAMinimal (virtual/federated)Full (power & cooling)
Cost ProfileLower capex/opexHigher capex, critical for uptime
Failover ModelFederation across Micro EDCsOn‑site + federation
Latency FocusUltra‑low, localizedLow, with robust local resilience

By aligning your edge strategy with ANSI/TIA‑942‑C’s Type A and Type B definitions, you can deploy Micro EDCs that precisely match application demands—whether city‑wide IoT or factory‑floor reliability.
