Intelligent Patching: Interconnection and Cross-connection Configuration (Automated Infrastructure Management – AIM)

As networks scale to accommodate growing digital demands, Intelligent Patching—a key component of Automated Infrastructure Management (AIM)—is transforming how physical layer connectivity is monitored, managed, and maintained.

By automating the process of patching (connecting network equipment via patch cords), Intelligent Patching increases operational visibility and accuracy, while reducing manual errors and downtime in mission-critical environments like data centers.

What is Intelligent Patching?

At its core, intelligent patching automates and monitors patch cord connections between switches, servers, and patch panels. It forms the foundation for real-time tracking of connectivity changes, streamlining Moves, Adds, and Changes (MACs), and providing critical data for network audits and troubleshooting.

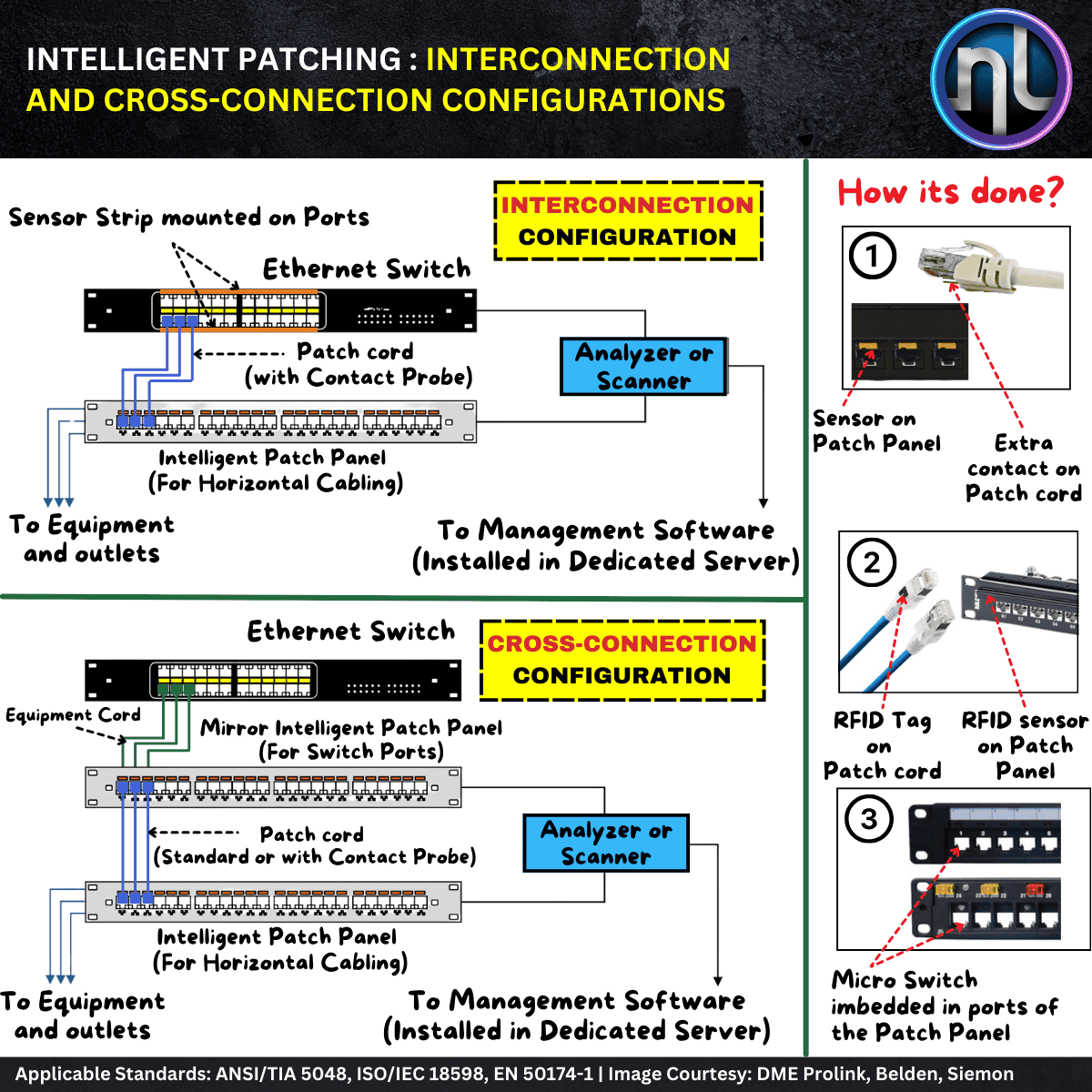

Intelligent Patching Configurations

AIM systems typically support two main configuration models:

Interconnection Configuration

• Utilizes sensor strips on Ethernet Switch ports.

• Detects direct patch cord connections between the switch and the intelligent patch panel (connected to horizontal cabling).

• Best for setups needing simple, direct device-to-panel links.

Cross-connection Configuration

• Involves mirroring Ethernet switch ports to an Intelligent Patch Panel.

• Patch cords link the mirrored panel to another intelligent patch panel handling the horizontal cabling.

• Ideal for systems using micro-switches or sensors for connection detection—provides more control and documentation flexibility.

Current Detection Technologies in Intelligent Patching

9th Pin Sensor Contact
A dedicated contact pin on the patch cord interfaces with a sensor on the patch panel for accurate physical connection detection.

RFID Technology
RFID tags embedded in patch cords are detected by sensors on the patch panel, enabling contactless connection identification.

Micro-Switch Embedded Ports
Small mechanical switches detect when a cord is inserted or removed, providing instant port activity feedback.

Key Benefits of Intelligent Patching

• Real-Time Monitoring of physical connections between switch and patch panel ports

• Centralized Database that logs all changes and historical connection data

• SNMP Integration for seamless communication with network management platforms

• Automated Work Orders for MAC processes—minimizing manual intervention

• Faster Troubleshooting & Enhanced Security by knowing exactly what’s connected and where

Overall, AIM systems with intelligent patching capabilities streamline the management of interconnection and cross-connection configurations in network infrastructure, improving efficiency, reliability, and agility in IT operations. By automating provisioning, enforcing policies, and providing real-time visibility, AIM systems help organizations optimize their network resources and better adapt to changing business requirements.

As part of Northern Link’s commitment to advanced data center infrastructure, we offer solutions compatible with AIM systems for intelligent patching. Whether you’re designing a new network or modernizing an existing one, intelligent patching provides the foundation for future-ready, agile network operations.
