Distributed Redundancy: 3N/2 Model in Data Center Design

Achieving high availability in today’s data centers requires smart redundancy strategies. The Distributed Redundancy (3N/2) model strikes an optimal balance between cost and reliability by sharing backup resources across multiple loads.

How the 3N/2 Configuration Works

• Load‑to‑UPS Ratio: For every 3 units of critical load (N), you deploy 2 UPS systems.

• Interconnected Operation: All UPS units are paralleled so that if one UPS fails, the remaining units automatically redistribute the load and maintain power without interruption.

• Resource Efficiency: Unlike traditional 2N (fully duplicated) redundancy—which requires 2 UPS per 1 load—or N+1, 3N/2 uses fewer UPS units to deliver the same level of resiliency.

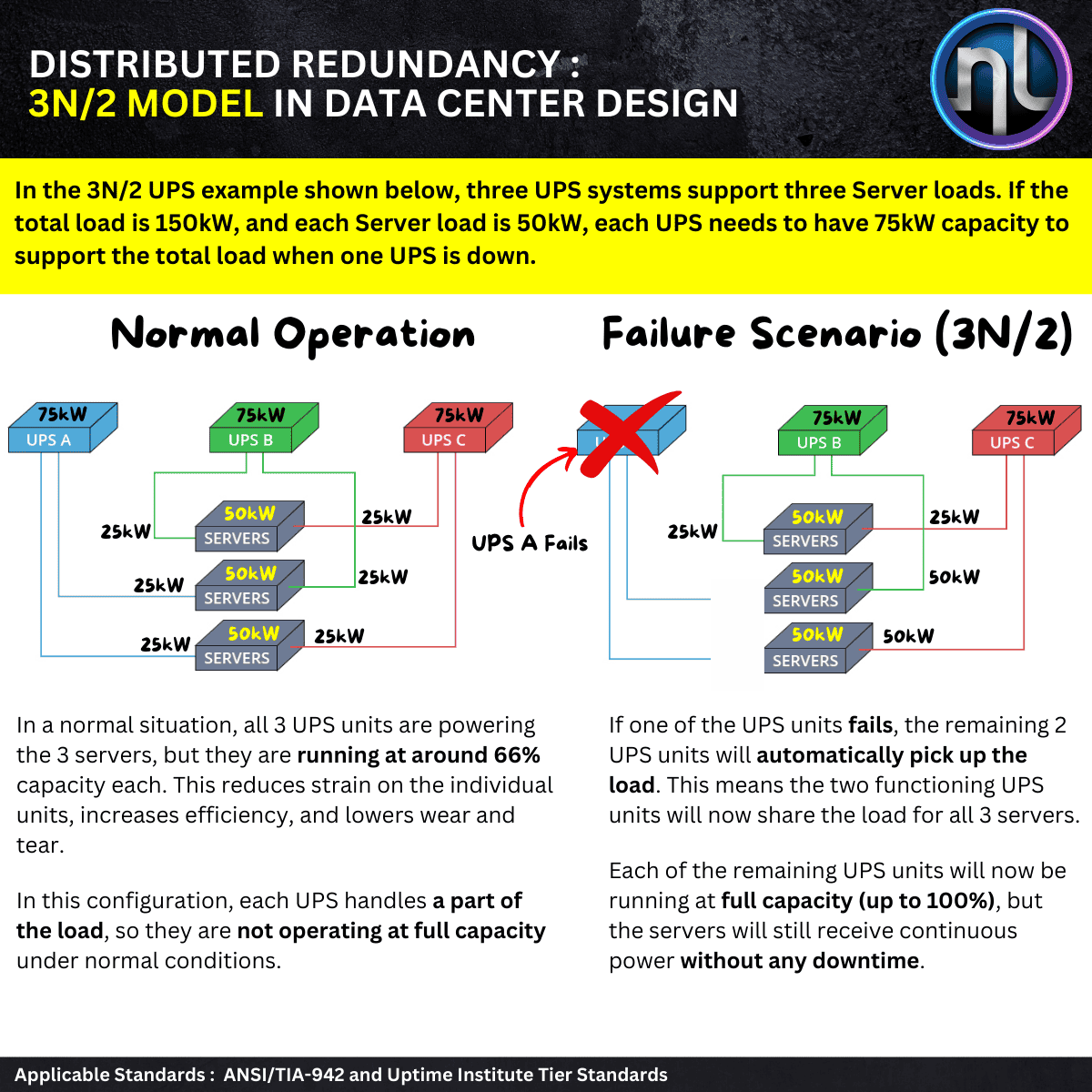

Visualizing 3N/2 vs. N+1

N+1 Example (N=3):

• 3 critical load units + 1 spare UPS = 4 total UPS
• One UPS can fail, but you carry a full extra unit.

3N/2 Example (N=3):

• 3 critical load units serviced by 2 UPS

• If one UPS goes offline, the second UPS picks up two-thirds of the load while the third UPS (in parallel) covers the remainder—keeping all three loads powered.

Why Choose the 3N/2 Model?

✅ Reduced CAPEX and OPEX : Fewer UPS units mean lower initial investment and maintenance costs.

✅ Efficient Load Management : UPS units share the load more effectively, reducing the chance of over-provisioning.

✅ Scalability : Easily adaptable to larger or growing data center environments without overspending on additional infrastructure.

Key Takeaway

The 3N/2 distributed redundancy approach delivers enterprise‑grade availability with ~25% fewer UPS units than N+1, making it an ideal choice for organizations looking to optimize both reliability and budget.
