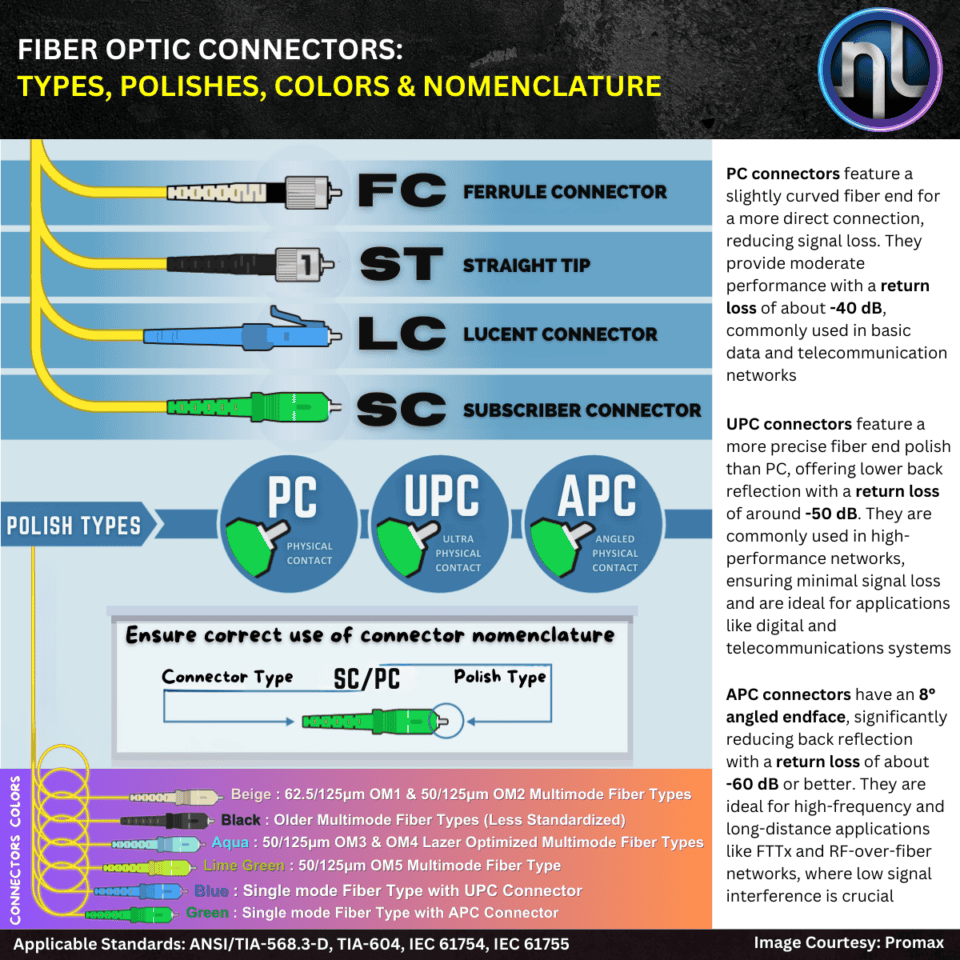

𝗙𝗶𝗯𝗲𝗿 𝗢𝗽𝘁𝗶𝗰 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿𝘀 : 𝗧𝘆𝗽𝗲𝘀, 𝗣𝗼𝗹𝗶𝘀𝗵𝗲𝘀, 𝗖𝗼𝗹𝗼𝗿𝘀, 𝗮𝗻𝗱 𝗡𝗼𝗺𝗲𝗻𝗰𝗹𝗮𝘁𝘂𝗿𝗲

𝗙𝗖 (𝗙𝗲𝗿𝗿𝘂𝗹𝗲 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿) is a screw-on connector built for environments with high vibration, providing a stable, secure connection. Its design reduces signal loss by applying consistent pressure, making it ideal for long-distance and high-frequency fiber optic applications, especially in telecom and precision fields.

𝗦𝗧 (𝗦𝘁𝗿𝗮𝗶𝗴𝗵𝘁 𝗧𝗶𝗽) 𝗰𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿 has a twist-lock design, allowing quick connection and disconnection. Though once popular in networking, its larger size and lower density are causing it to be replaced by smaller options like LC and SC, but it is still favored in test and lab environments.

𝗟𝗖 (𝗟𝘂𝗰𝗲𝗻𝘁 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿) is a small, snap-in connector designed for high-density applications. With its 1.25 mm ferrule, it allows more connections in tight spaces, making it widely used in data centers and telecom rooms where space is at a premium.

𝗦𝗖 (𝗦𝘂𝗯𝘀𝗰𝗿𝗶𝗯𝗲𝗿 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿) features a simple push-pull design, making it easy to handle. Its square shape and durable 2.5 mm ferrule, along with a reliable locking mechanism, make it a common choice for network and data communication applications.

𝗧𝘆𝗽𝗲𝘀 𝗼𝗳 𝗣𝗼𝗹𝗶𝘀𝗵𝗶𝗻𝗴 :

𝗣𝗖 (𝗣𝗵𝘆𝘀𝗶𝗰𝗮𝗹 𝗖𝗼𝗻𝘁𝗮𝗰𝘁): PC connectors improve basic flat-surface connectors with a slightly curved fiber end, reducing signal loss by minimizing air gaps, making them suitable for basic data and telecommunication networks with moderate performance needs.

𝗨𝗣𝗖 (𝗨𝗹𝘁𝗿𝗮 𝗣𝗵𝘆𝘀𝗶𝗰𝗮𝗹 𝗖𝗼𝗻𝘁𝗮𝗰𝘁): UPC connectors offer a more precisely polished endface than PC connectors, reducing back reflection to around -50 dB, making them ideal for digital, CATV, and telephony systems where low back reflection is essential.

𝗔𝗣𝗖 (𝗔𝗻𝗴𝗹𝗲𝗱 𝗣𝗵𝘆𝘀𝗶𝗰𝗮𝗹 𝗖𝗼𝗻𝘁𝗮𝗰𝘁): APC connectors feature an 8-degree angled endface that significantly reduces back reflection, achieving a return loss of -60 dB or better, and are commonly used in applications like FTTx, RF-over-fiber, and high-speed internet services where signal integrity is critical.

𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿 𝗖𝗼𝗹𝗼𝗿𝘀 :

𝗕𝗲𝗶𝗴𝗲 : 62.5/125µm OM1 & 50/125µm OM2 Multimode Fiber Types

𝗕𝗹𝗮𝗰𝗸 : Older Multimode Fiber Types (Less Standardized)

𝗔𝗾𝘂𝗮 : 50/125µm OM3 & OM4 Lazer Optimized Multimode Fiber Types

𝗟𝗶𝗺𝗲 𝗚𝗿𝗲𝗲𝗻 : 50/125µm OM5 Multimode Fiber Type

𝗕𝗹𝘂𝗲 : Single mode Fiber Type with UPC Connector

𝗚𝗿𝗲𝗲𝗻 : Single mode Fiber Type with APC Connector

Finally, ensure the correct use of 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿 𝗡𝗼𝗺𝗲𝗻𝗰𝗹𝗮𝘁𝘂𝗿𝗲. For example, SC/PC refers to Subscriber Connector with Physical Contact Polish
